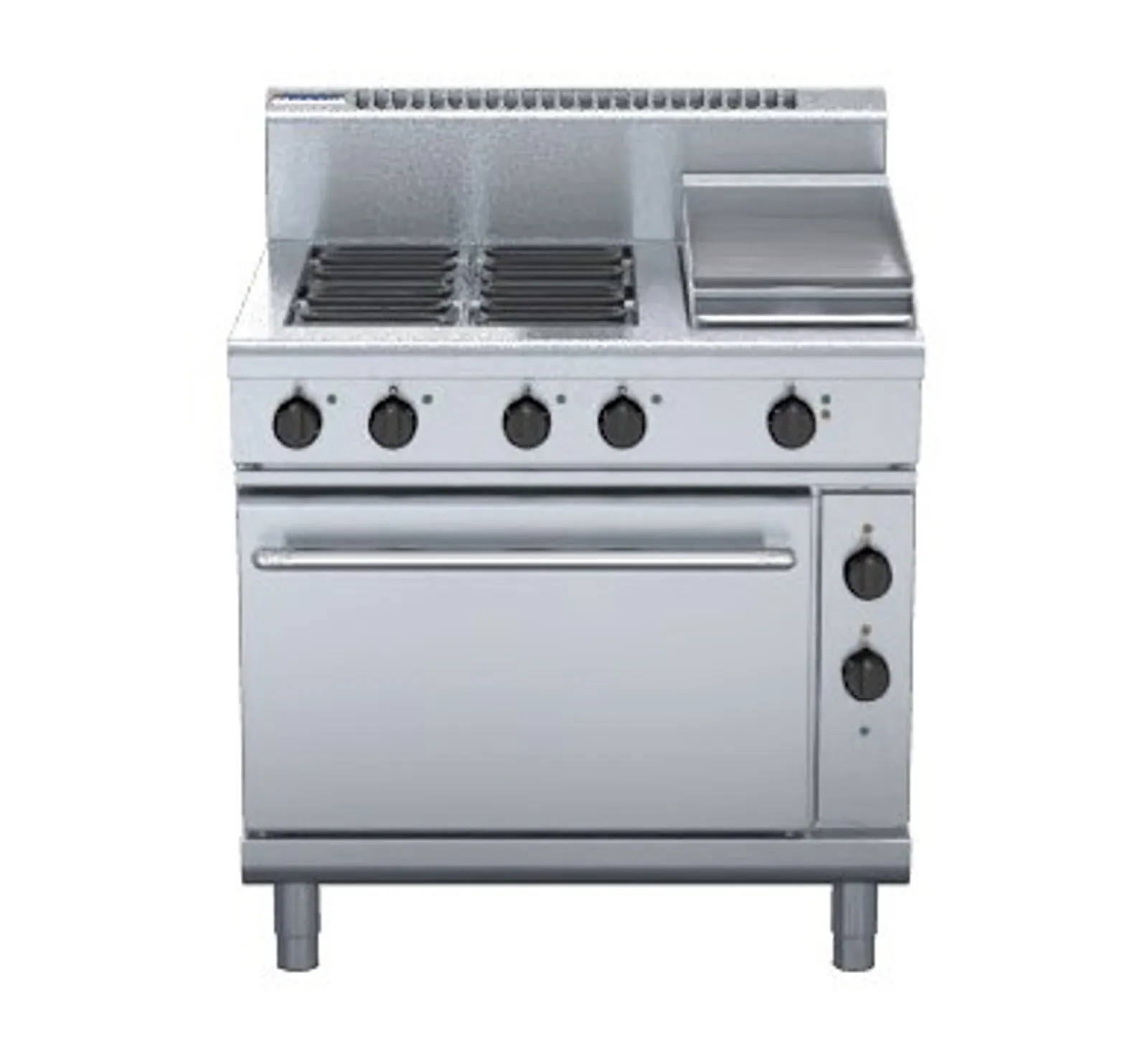

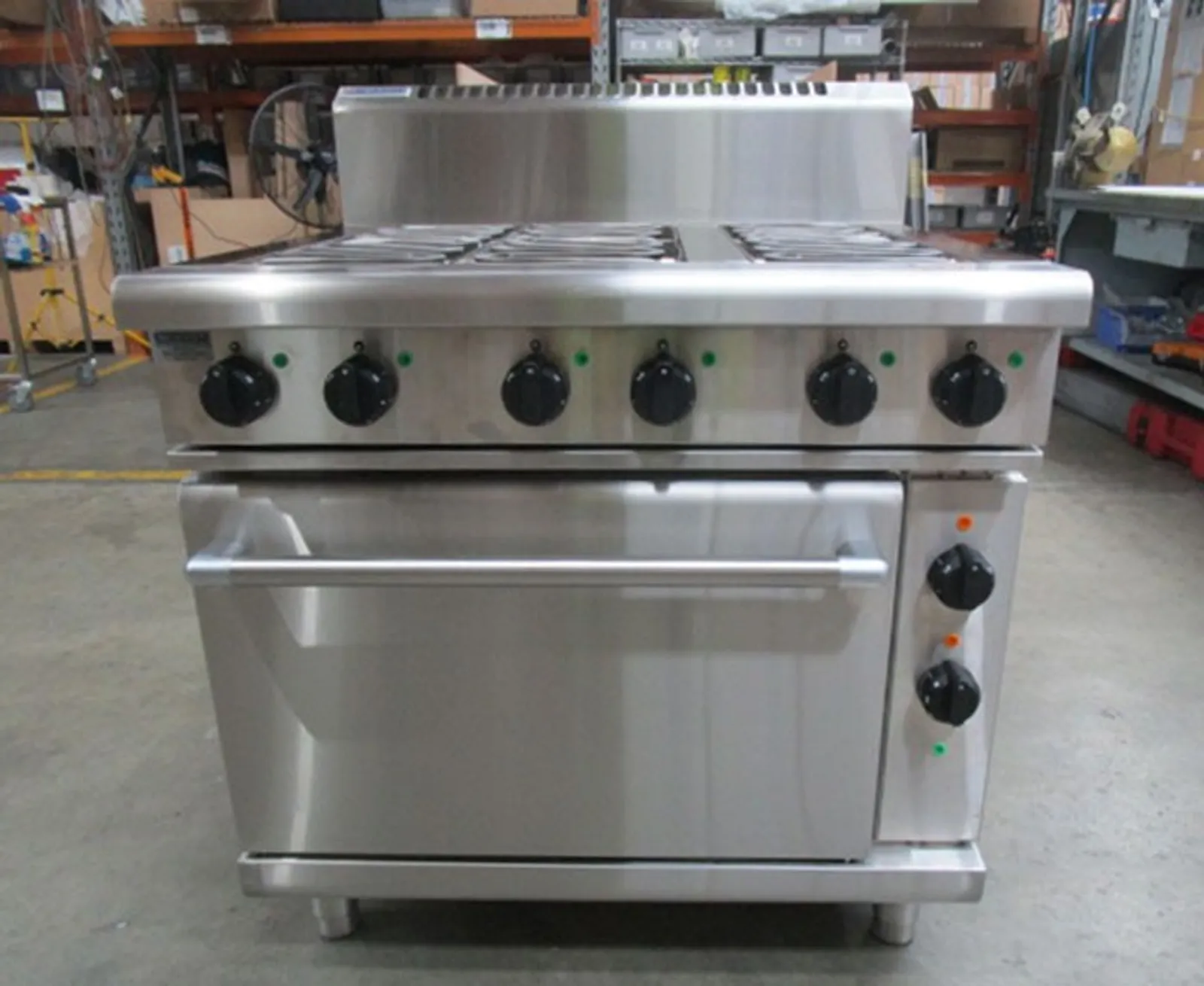

Overall Construction

• Galvanized steel chassis
• Welded hob with 1.5mm 304 stainless steel bull nose
• Splashback and hob sides 1.2mm 304 stainless steel
• Front panels and oven sides 0.9mm 304 stainless steel
• 150mm legs in 63mm dia. heavy-duty 1.2mm 304 stainless steel with adjustable feet

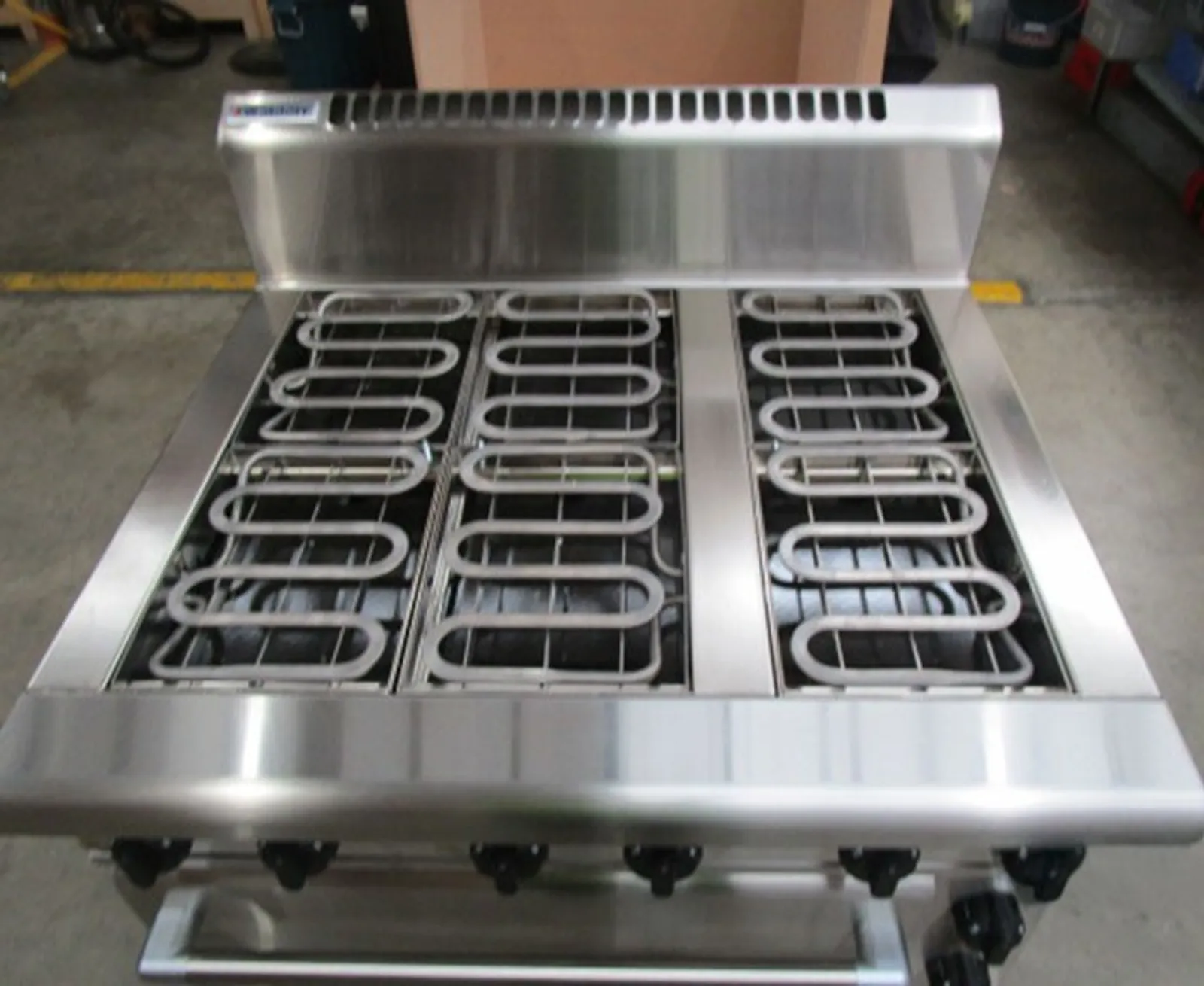

Cooktop

• 2.4kW open radiant elements in heavy-duty welded element frames
• Stainless steel spill trays
• Hot plate elements with machine finished 8mm steel plate (optional extra)
• 12mm thick mild steel griddle plates
• 2.5mm 304 stainless steel griddle splash guards
• Aluminised steel internal construction
Griddle sections are standard on RH side. Available on LH side or
centre to order.

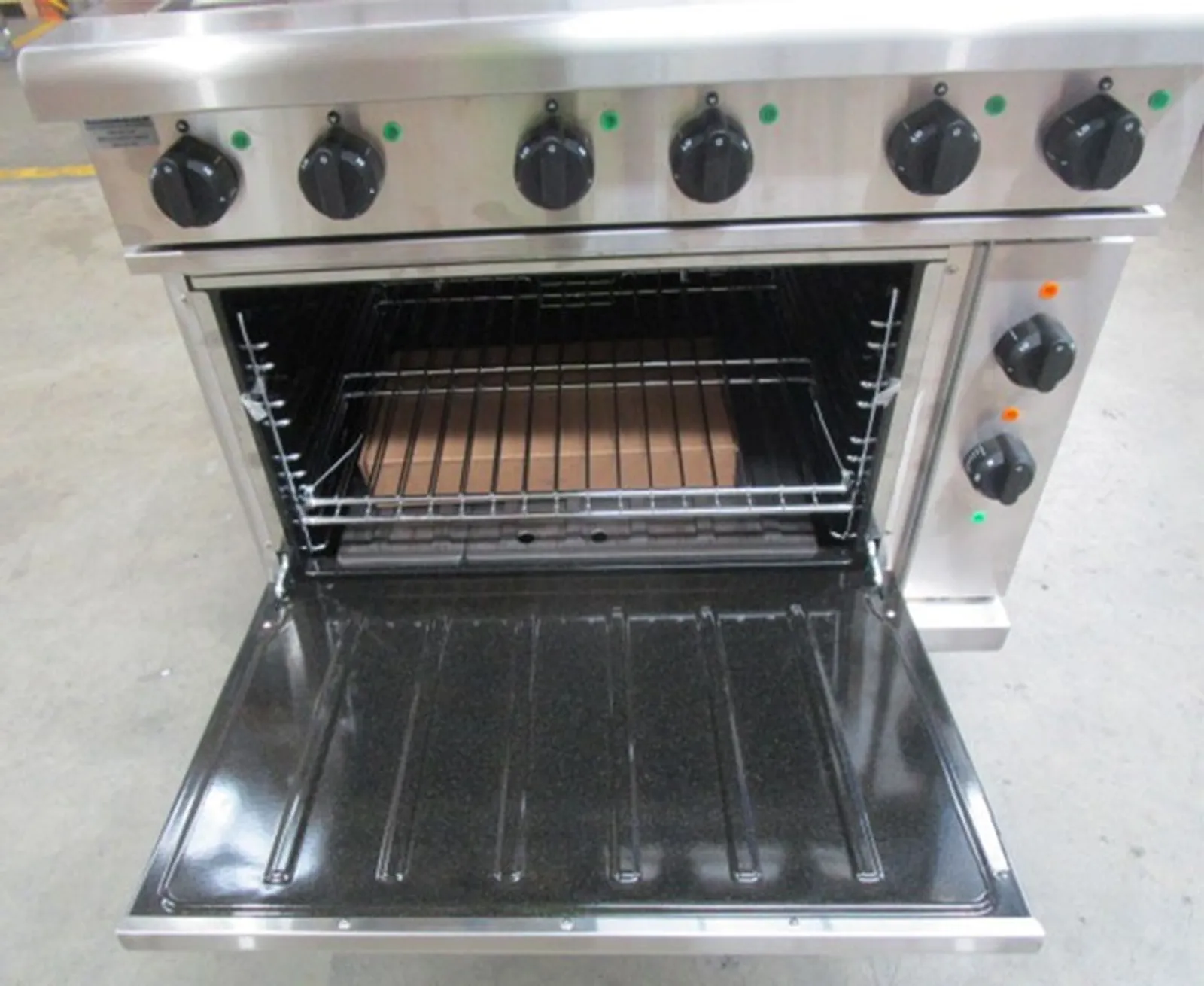

Oven

• Fully welded and vitreous enamelled oven liner
• GN 2/1 capacity with 4 position racking
• Heavy-duty easy remove heavy wire chrome rack supports
• Cast iron even heat oven sole plate
• 6.5kW heating elements
• Welded frame drop down door with heavy-duty spring hinge system
• 0.9mm 304 stainless steel door outer
• 1.0mm press formed vitreous enamelled door inner
• High density fibreglass insulated
• Stay cool stainless steel door handle with cast metal handle mounts
• Supplied with two chrome wire oven racks
