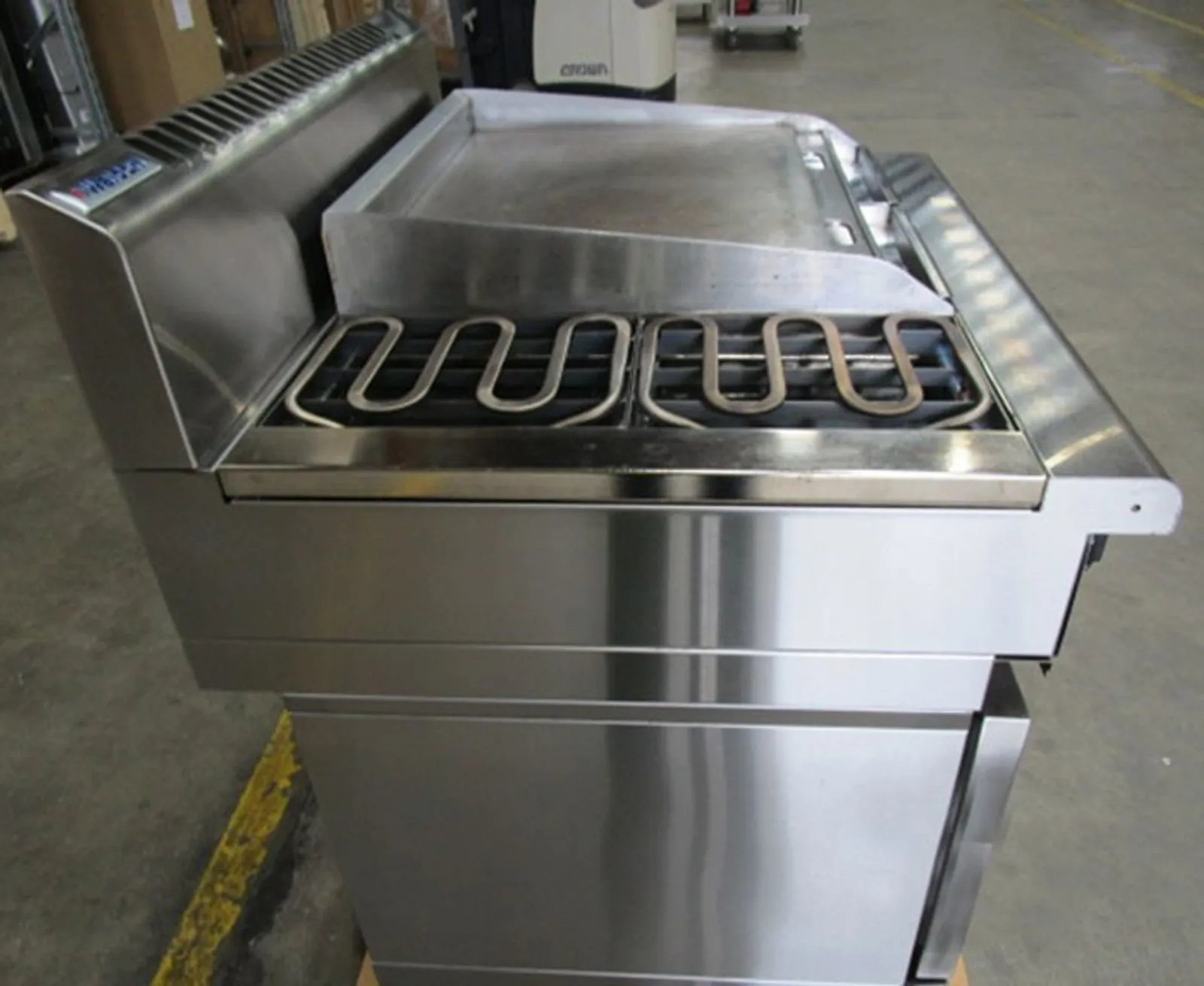

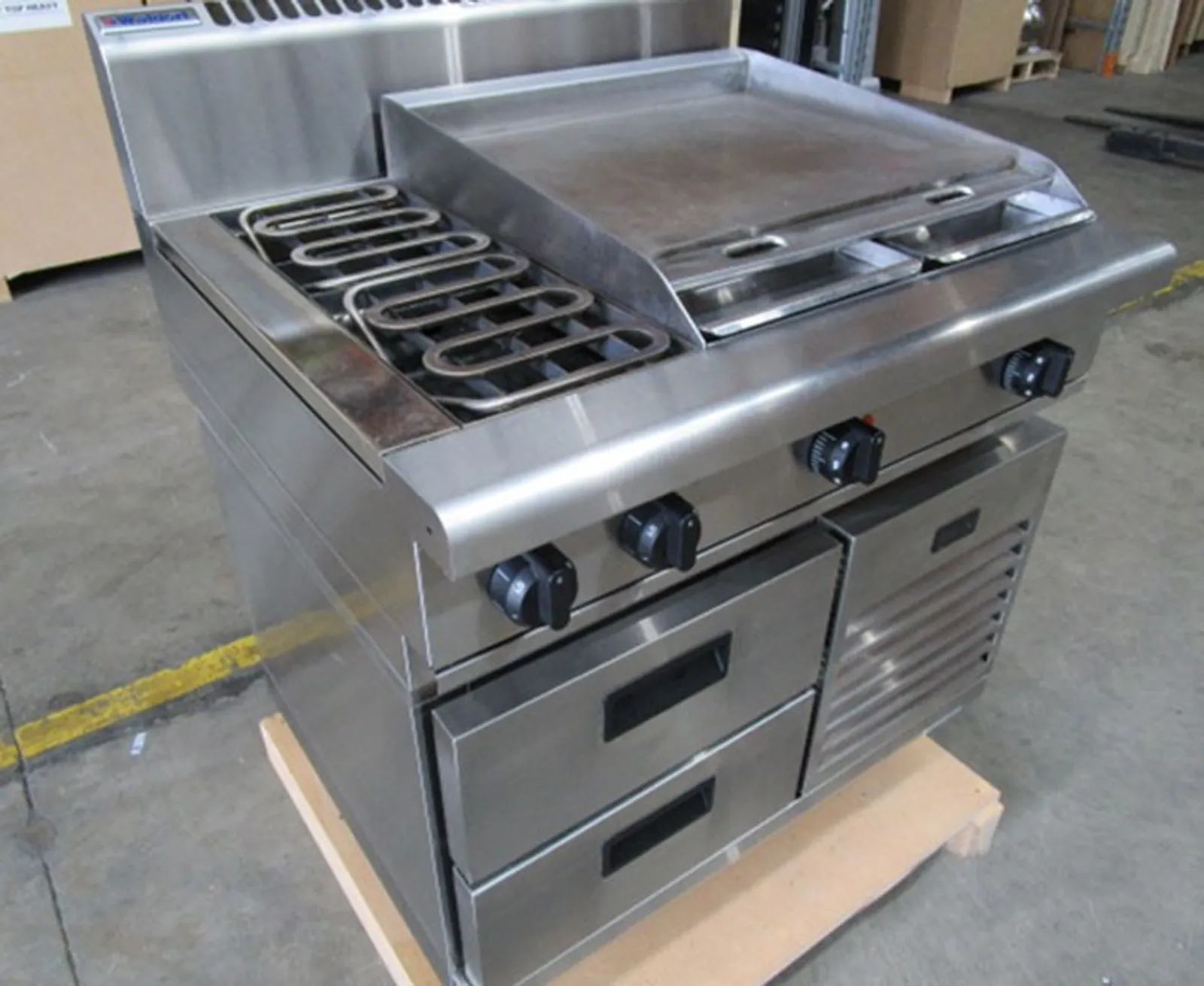

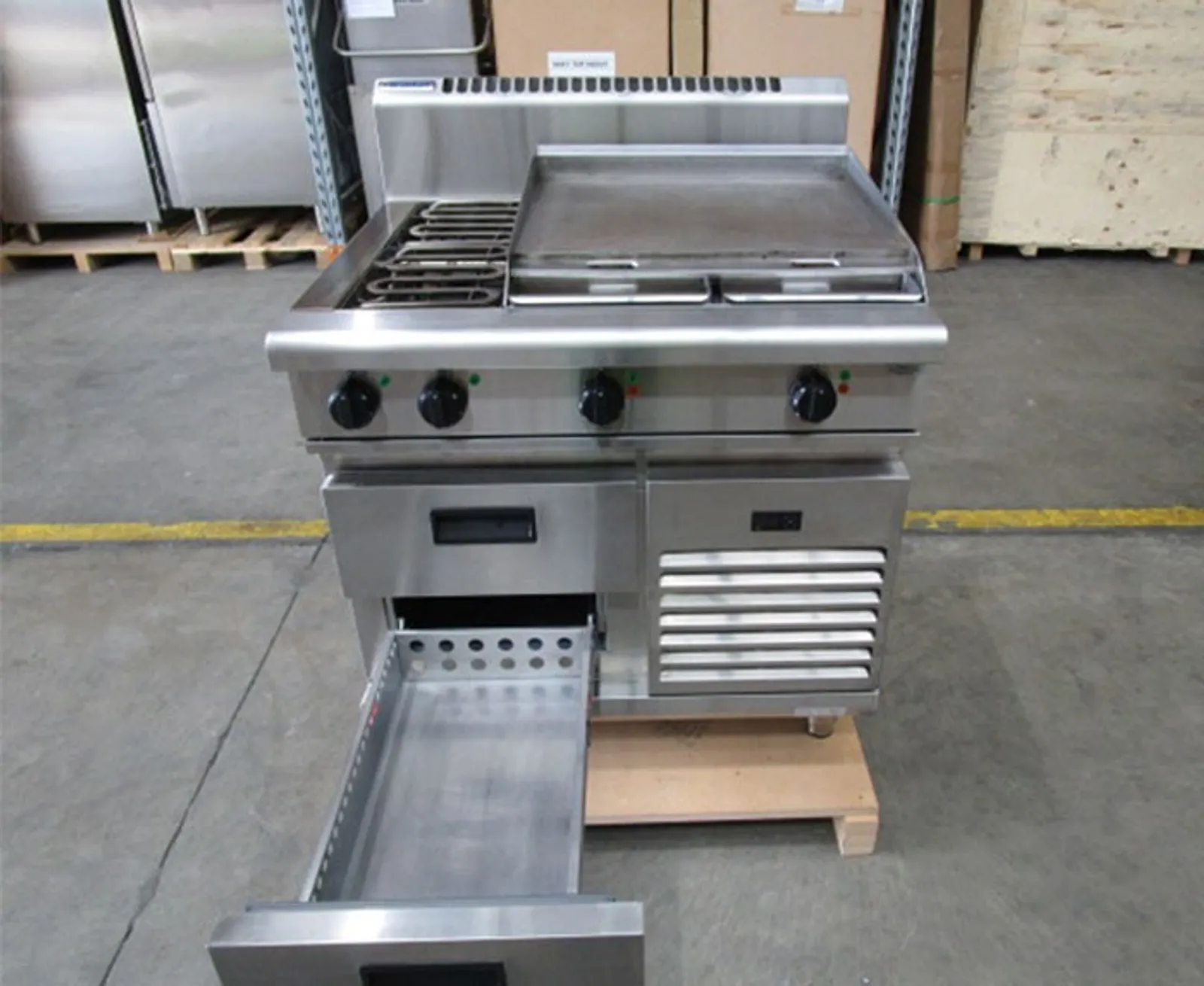

Waldorf 800 Series RN8606E-RB - 900mm Electric Cooktop Refrigerated Base - Clearance

Overall Construction

Cooktop
• Welded hob with 1.5mm 304 stainless steel bull nose
• Splashback and side panels 1.2mm 304 stainless steel
• Front panels 0.9mm 304 stainless steel
• 2.4kW open radiant elements in heavy-duty welded element frames
• Vitreous enamelled element module and hob spill trays
• Hot Plate elements with machine finished 8mm steel plate (optional extra)
• 12mm thick mild steel griddle plates
• 2.5mm 304 stainless steel griddle splash guards
• Aluminised steel internal construction

Refrigerated Base (supplied as –RB model)
• Self contained suite matched modular base
• Ventilated system with R134a refrigerant
• -2 + 8˚C temperature (Tropical Climate rated)

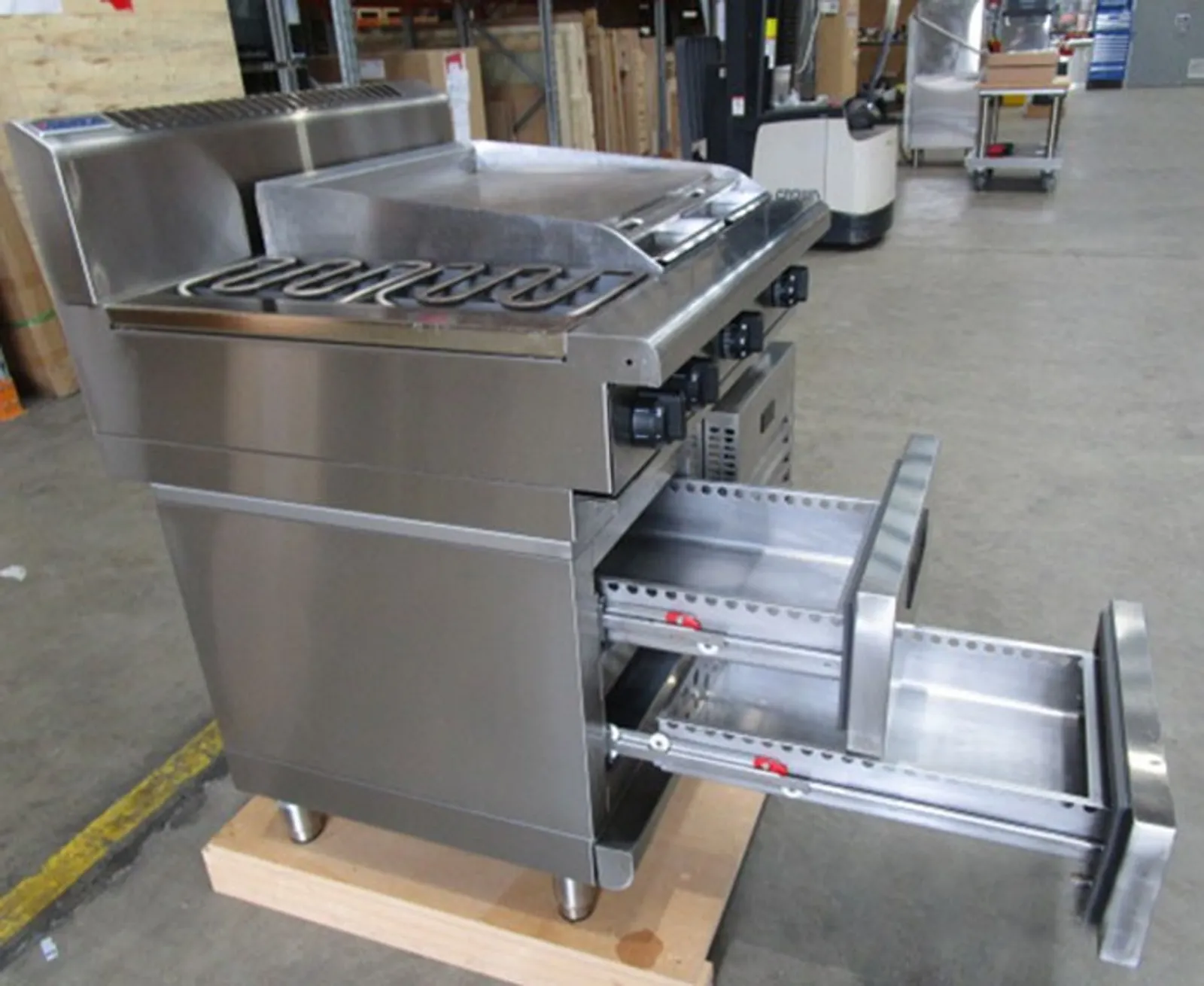

• Two GN 1/1 drawers
• 100mm deep pan capacity
• Heavy-duty European telescopic drawer guides
• Magnetic drawer gaskets (replaceable without tools)
• 50mm fully foamed CFC free insulation
• 304 stainless steel exterior and interior
• Anti-corrosion treated evaporator
• No condensate drain required
• 63mm dia. heavy-duty 1.2mm 304 stainless steel legs with adjustable feet
• Condensing unit removable through front of unit for service
• Easy clean interior

Controls

Cooktop
• Large easy use control knob - heat resistant reinforced
• Easy view control settings on knob
• Radiant elements with energy regulator controls
• Hot Plate elements with energy regulator controls
• 50-320˚C thermostat per 300mm griddle section
• Indicator lights for power and heating for each element control
Refrigerated Base
• Digital control electronic thermostat
• Automatic defrost
• Automatic evaporation of defrost water
• -2 +8˚C temperature range

Cleaning and Servicing
• All models with easy clean stainless steel external finish
• Removable vitreous enamelled element module and hob spill trays
• Hinge up element and griddle sections
• Access to all parts from front of unit
• Refrigerated Base condenser removable through front of unit
