Fagor WUC-502TBD iNova Front Loading Commercial Dishwasher – 500x500mm Basket

Click to zoom

Fagor WUC-502TBD iNova Front Loading Commercial Dishwasher – 500x500mm Basket

Name: Fagor WUC-502TBD iNova Front Loading Commercial Dishwasher – 500x500mm Basket
Brand: Fagor Professional
SKU: FED-WUC-502TBD
Price: 6179.25 AUD
Availability: InStock

Item ID: 0W5-EUD

SKU: FED-WUC-502TBD

Fagor WUC-502TBD iNova Front Loading Commercial Dishwasher – 500x500mm Basket
Type: Front-loading commercial dishwasher
Basket Size: 500 x 500mm
Production: Up to 40 baskets/hour
Wash Cycles: 55 / 75 / 120 seconds
Maximum Ware Height: 385mm
Wash Temperature: 60°C
Rinse Temperature: 85°C
Water Consumption: 2.2L per cycle
Tank Capacity: 20L
Boiler Capacity: 7L
Tank Heating: 2.8kW
Boiler Heating: 2.8kW
Power: 240V, 3.48kW, 15A
Dimensions: 576W x 605D x 835H mm
Construction: Stainless steel
Controls: Electronic control with two-digit LED display
Warranty: 2 years parts and labour
Included Baskets: 1 glass basket, 1 plate basket and 1 cutlery basket

$5,617.50ex GSTStandard price

Rent per Week: $78.43

Apply for Finance

Indicative weekly rental, GST inclusive, subject to approval.

$4,917.19best member price · ex GST

Members pay less on this line as their spend builds, down to $4,917.19. How member pricing works

$5,617.50 at $0 spend$4,917.19 at $50,000

Join the buying group — $14.95/month

Australia-wide delivery

Manufacturer warranty

$5,617.50ex GST

See all Fagor Professional products →More Commercial Dishwashers & Glasswashers →

Fagor WUC-502TBD iNova Front Loading Commercial Dishwasher – 500x500mm Basket

About this product

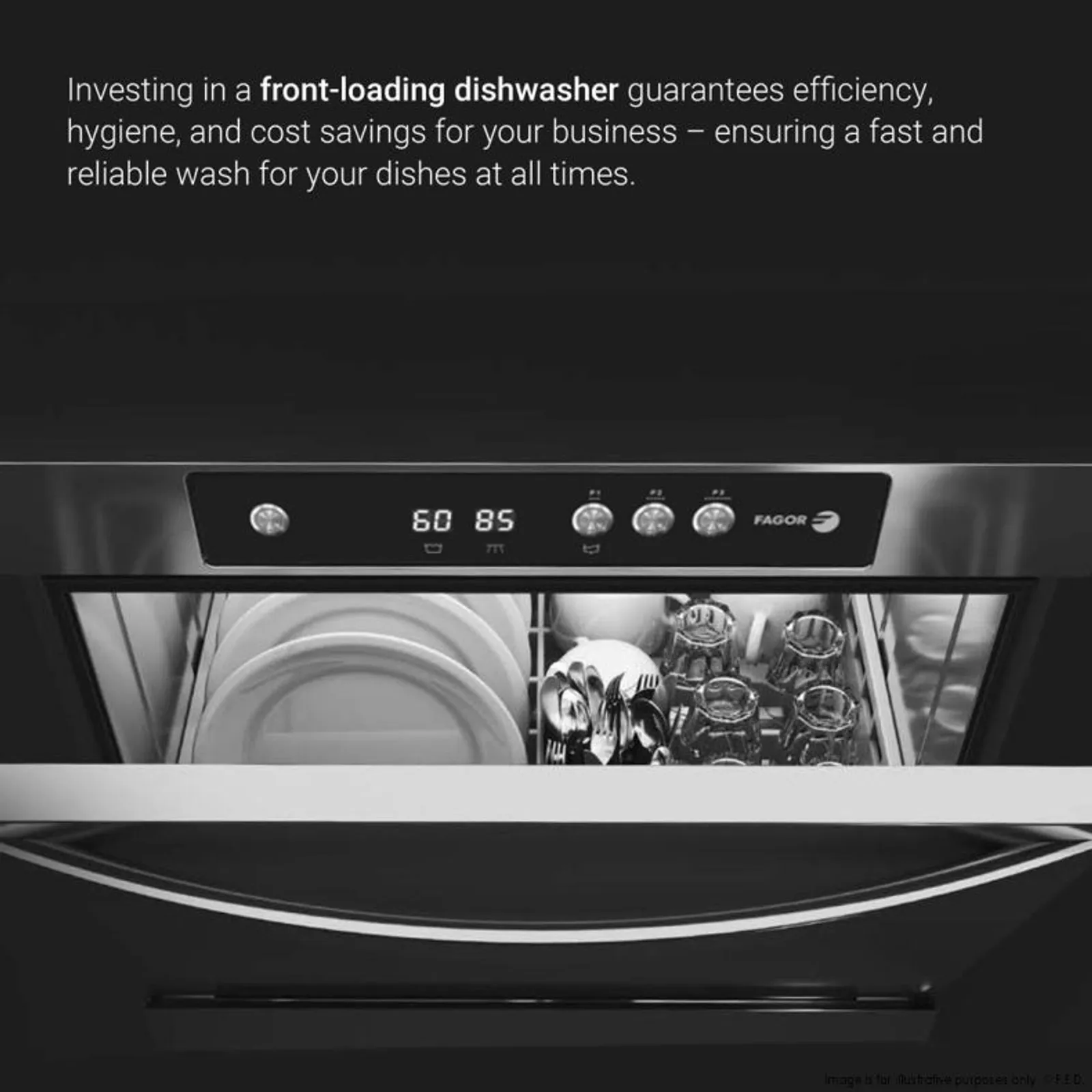

The Fagor WUC-502TBD iNova is a compact, high-performance front-loading commercial dishwasher built for busy cafés, restaurants, bars and professional kitchens. Designed around a 500 x 500mm basket, it can process up to 40 baskets per hour while offering three selectable wash cycles of 55, 75 and 120 seconds.
Engineered for efficient commercial cleaning, the WUC-502TBD uses just 2.2 litres of water per cycle and features dedicated wash and rinse temperature control at 60°C and 85°C. Its stainless-steel construction, dual-flow wash pumps and triple-stage filtration system provide dependable performance through demanding service periods.
The iNova dishwasher also combines practical automation with operator-friendly controls, including electronic temperature probes, LED displays, automatic error diagnosis and integrated detergent and rinse-aid dispensing. A soundproofed, heat-resistant double-skin door further improves the working environment while helping retain heat during operation.

Key features

Three rapid wash cycles: Choose between 55, 75 and 120-second programs to match different cleaning requirements.
Low water consumption: Uses only 2.2L per cycle for efficient commercial operation.
Dual-flow wash pumps: Designed to deliver strong, consistent washing performance throughout the basket.
Triple-stage filtration: Helps capture food particles and keep the wash system cleaner.
Duo-KLIP wash and rinse arms: Practical wash-arm design supports thorough coverage of the load.
85°C hot rinse: High-temperature final rinsing supports professional hygiene requirements.
Electronic temperature control: Electronic probes monitor and regulate washing and rinsing temperatures.
i-ERROR diagnosis: On-screen error identification helps operators quickly identify machine issues.
Soundproofed double-skin door: Heat-resistant construction helps reduce operating noise and heat loss.
Magnetic safety micro-switch: Automatically stops the cycle if the door is accidentally opened.
Integrated detergent dispensing: Includes a peristaltic detergent dispenser for controlled chemical dosing.
Hydraulic rinse-aid dispenser: Built-in rinse-aid dispensing simplifies daily operation.
Automatic drain pump: Provides convenient drainage as part of the machine's operating system.
20L wash tank and 7L boiler: Provides dedicated water capacity for consistent commercial washing and rinsing.
Stainless-steel construction: Built for the demanding environment of professional kitchens.
385mm clearance: Accommodates a broad range of plates, dishes and other commercial kitchenware.
Three baskets supplied: Includes glass, plate and cutlery baskets for immediate operational flexibility.
Adjustable legs: Allows the dishwasher to be levelled for stable installation.
WaterMark approved: Certified for applicable Australian water connection requirements.
40 baskets per hour: High-throughput performance helps keep dishes moving during busy service periods.
