Tecnodom DO20 - Blast Chiller 20 X 1/1 GN Pan Capacity

The Tecnodom DO20 20 Tray Blast Chiller & Shock Freezer is a high-capacity commercial refrigeration solution engineered for professional kitchens that need to rapidly cool and freeze large quantities of freshly prepared food. With space for 20 x 1/1 GN trays or 600 x 400mm bakery trays, the DO20 is particularly well suited to restaurants, hotels, catering operations, bakeries, hospitals, aged-care facilities and other high-volume foodservice environments.
Designed to accelerate the cooling process, the Tecnodom DO20 can blast chill food from +70°C to +3°C and shock freeze from +70°C to -18°C. Its high-capacity system can process up to 70kg from 90°C to -18°C in approximately 180 minutes under specified operating conditions, helping commercial kitchens efficiently prepare food in advance while supporting consistent production workflows.

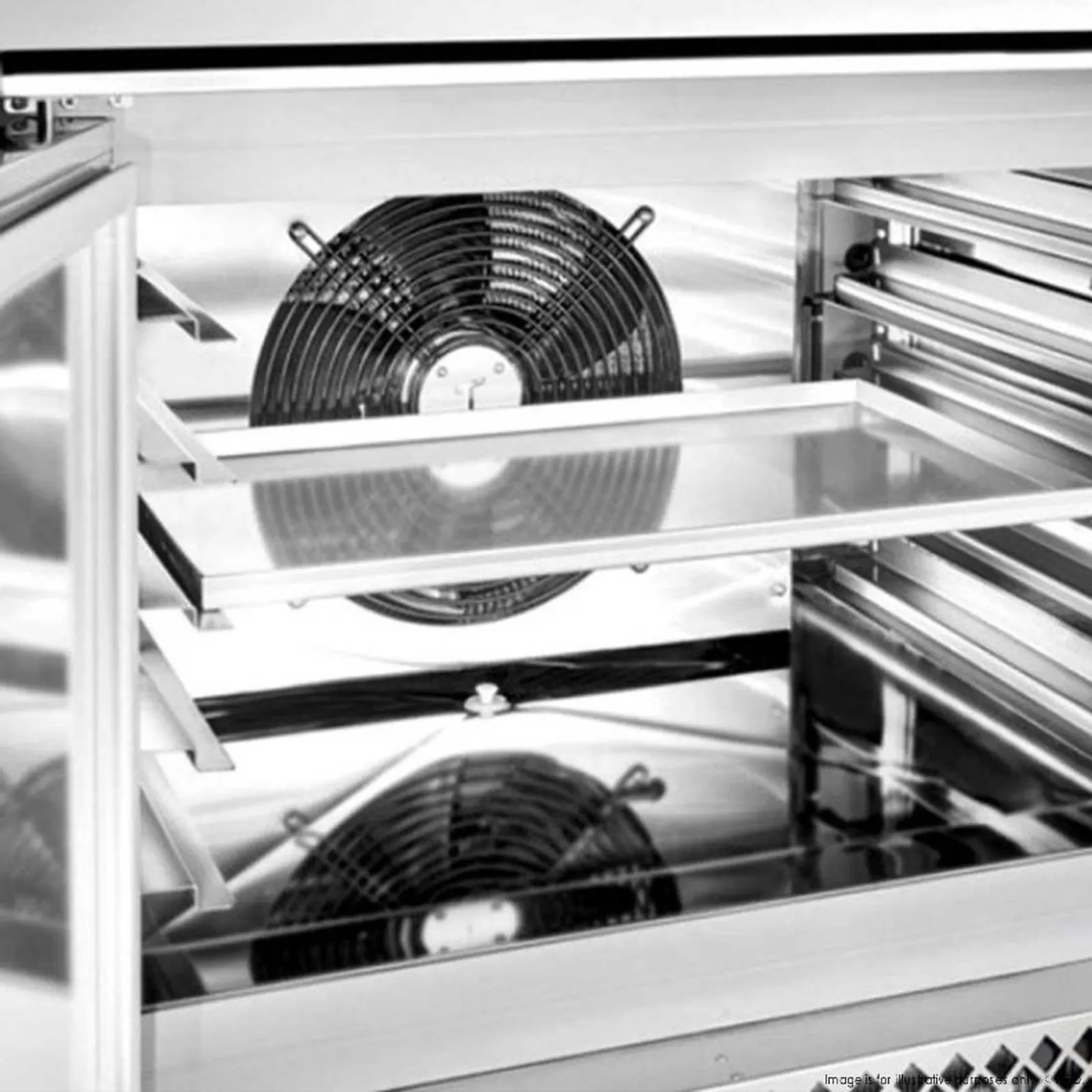

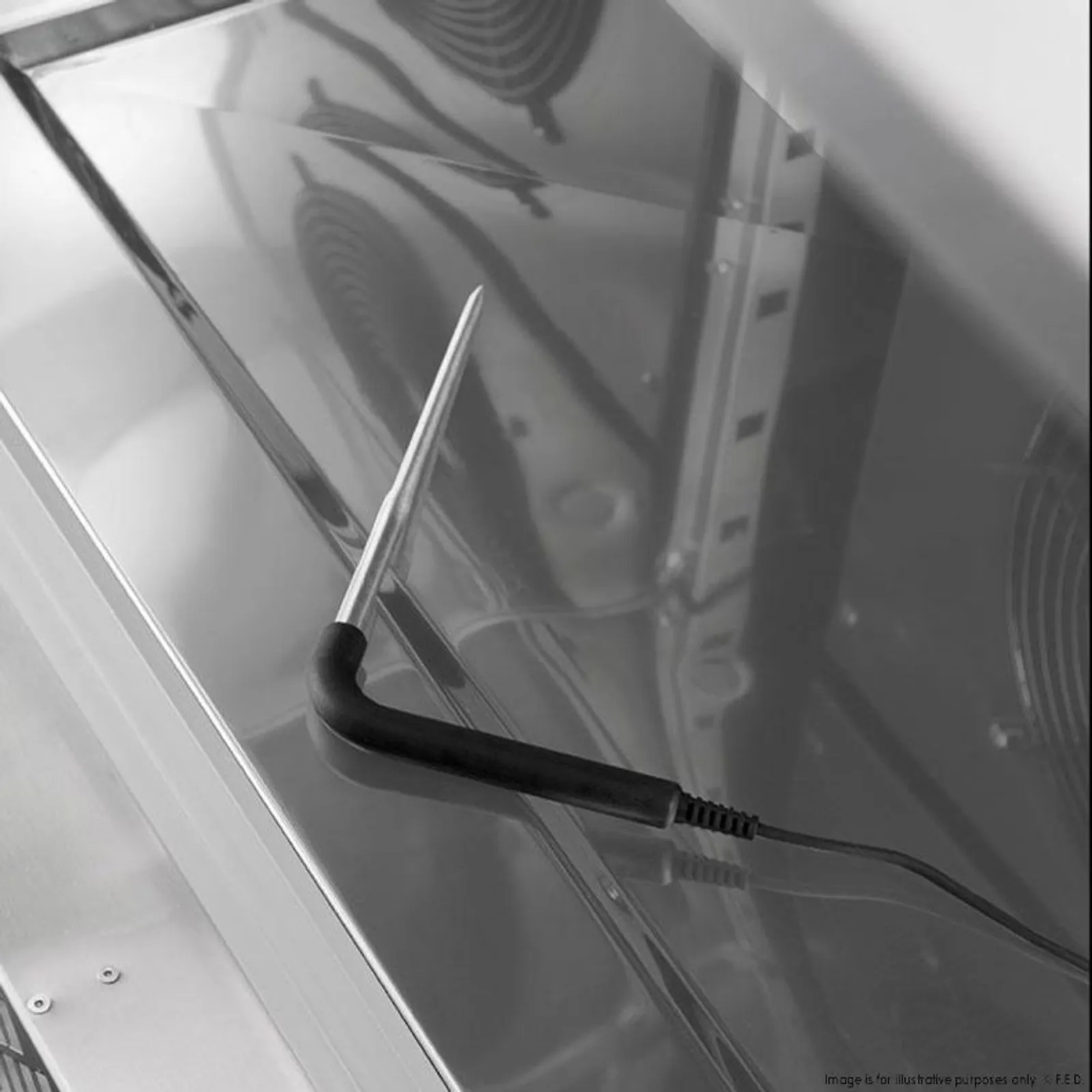

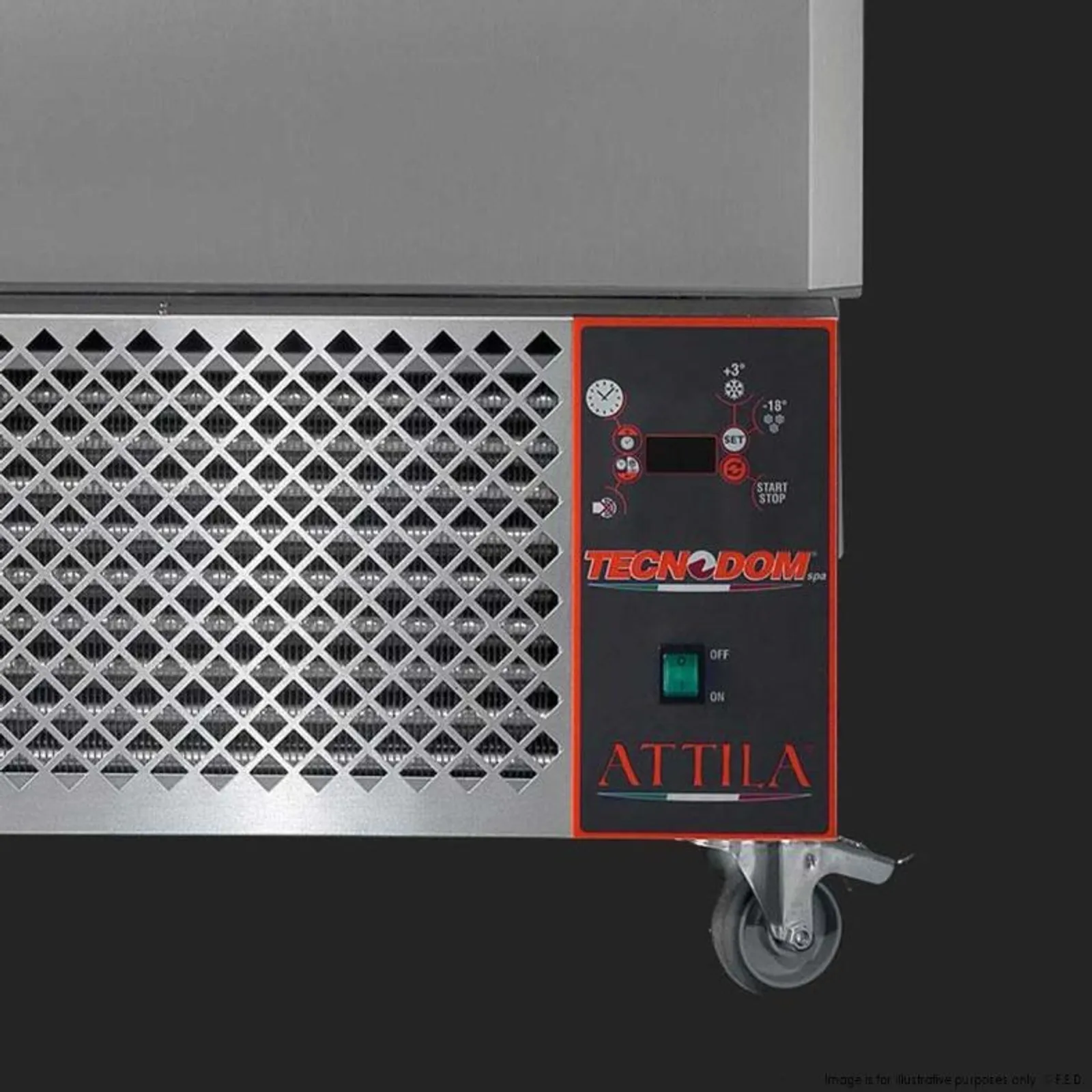

The unit features a 340-litre internal volume with 65mm tray spacing and universal stainless-steel pan grids, providing flexible storage for both GN and bakery-format trays. A digital controller with temperature display, chamber probe and core probe gives operators greater control over chilling and freezing cycles.
Built for demanding commercial environments, the DO20 combines stainless-steel interior and exterior construction with 60mm CFC-free polyurethane insulation. Rounded internal corners simplify cleaning, while adjustable stainless-steel feet provide stability and practical installation. The self-closing hinged door incorporates a magnetic gasket to help maintain the cabinet environment during operation.
The Tecnodom DO20 is also designed to perform in challenging kitchen conditions, with an ambient operating rating of 43°C and 65% relative humidity. Its 415V three-phase, 2.25kW electrical configuration provides the power required for intensive blast chilling and freezing applications.
For food businesses looking to improve batch production, food preservation and kitchen efficiency, the Tecnodom DO20 20-tray blast chiller and shock freezer delivers substantial capacity, rapid temperature reduction and professional-grade construction in a compact 750mm-wide footprint. It is an effective choice for operations that need reliable high-volume chilling and freezing performance without compromising flexibility or ease of cleaning.
