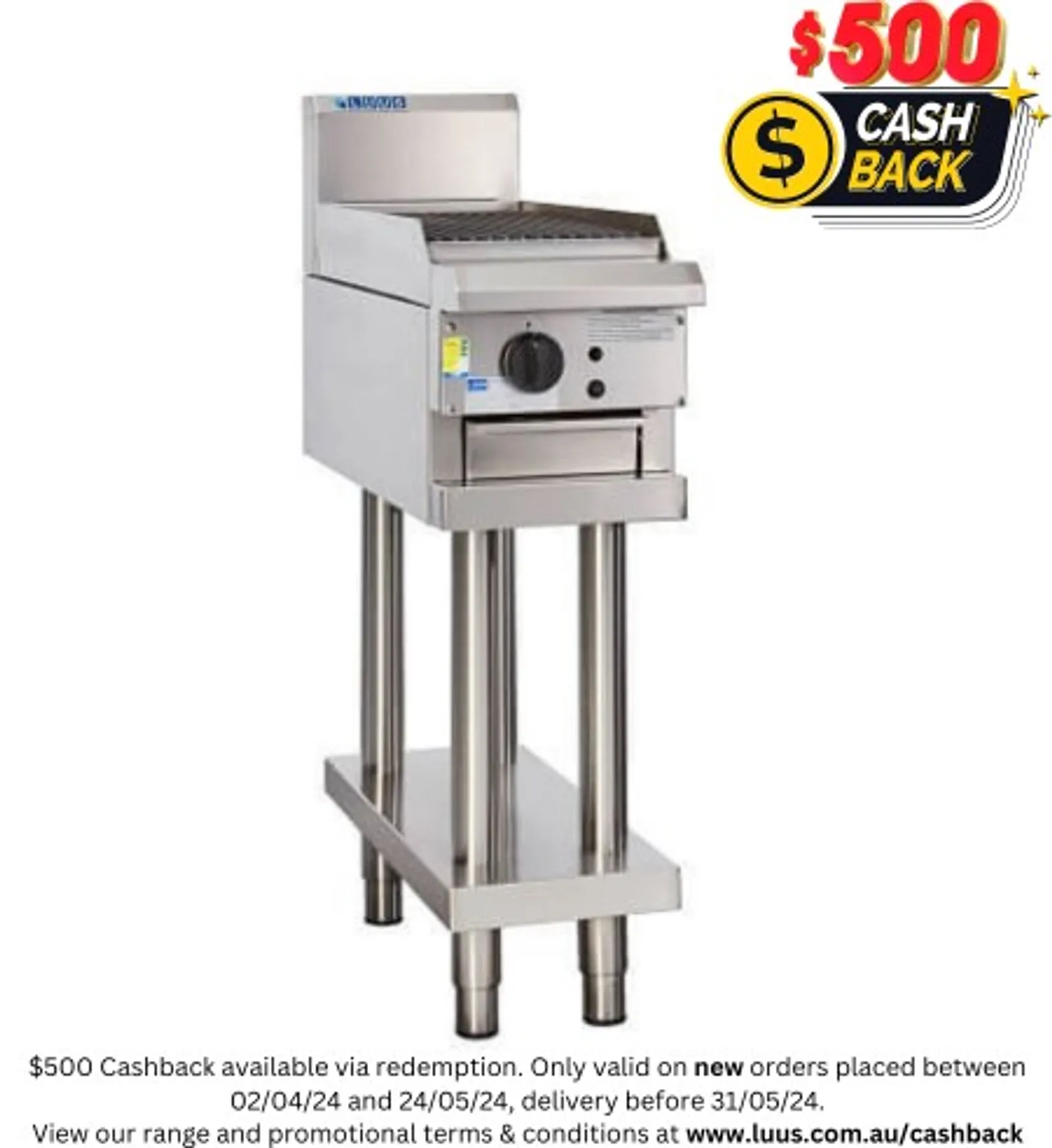

LUUS CS-3C - 300mm Chargrill

Professional series chargrills are designed for superior performance and add an increased smoky flavour to your steaks, burgers and chicken. Available in 300mm wide units up to 1200mm wide, with radiant hoods or ceramic rock options.

Chargrill/Barbecue

• 33 mj S/S tube burners with pilot, FFD and piezo ignition
• Variable flame control valve with low flame setting
• Cast-iron heat distributing hood as standard
• Optional ceramic rocks for even heat and smokiness
• Optional cast iron ceramic rock tray
• Heavy duty cast iron ‘diamond’ grates 147mm x 540mm
• CS-3C bbq: 280mm x 520mm; 0.15m2 cooking area
• 2mm 304 stainless steel splash guards
• Chargrill undertray 0.9mm stainless steel

Overall Construction

• Heavy duty construction
• Welded 1.2mm 304 stainless steel front hob
• Front and side panels 0.9mm 304 stainless steel
• Splashback 1.2 mm 304 stainless steel
• Stainless steel legs with 55mm height adjustment range

Connections

• Gas 3/4” BSP male
• 180mm from right, 50mm from rear, 600mm from floor
• Supplied with gas regulator (specify Nat or LP on order)

Cleaning & Servicing

• Easy access to all parts & components from front
