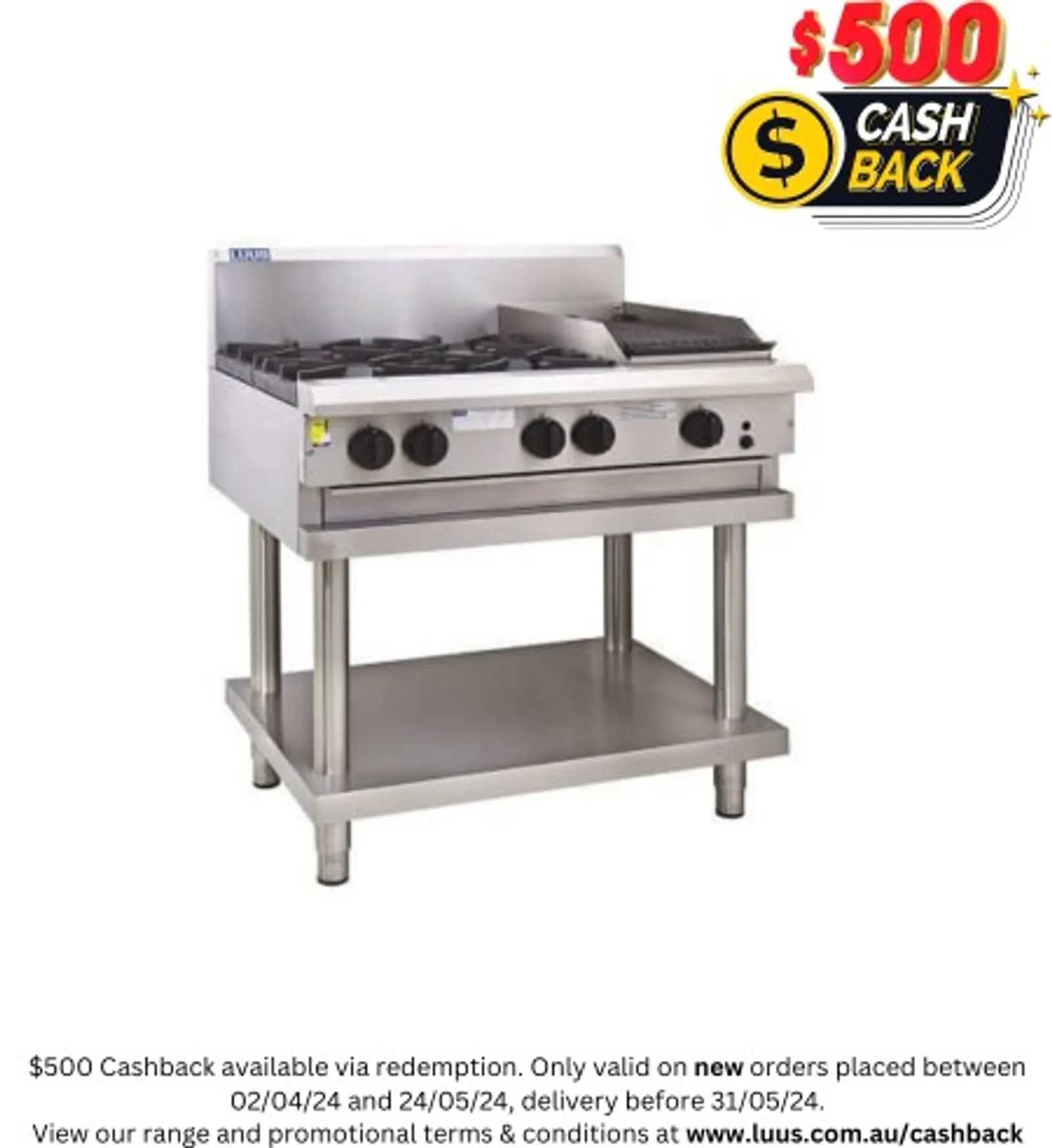

LUUS CS-4B3C - 4 Burner & 300 Wide Chargrill Cooktop

Engineered to higher specifications, CS cooktops feature impressive 28mj/h open burner, hotplate and chargrill combinations ranging from 300mm up to 1200mm wide. Choose from a variety of standard configurations or customise your own!

Open Burners

• Nickel plated cast iron 28 mj dual-flame ring burners
• Flame failure device standard (pilots optional extra)
• Variable flame control valve with low flame setting
• Heavy duty cast iron trivets
• Pressed 0.7mm 304 stainless steel spillage bowls

Chargrill/Barbecue

• 33 mj burners with pilot, FFD and piezo ignition
• Variable flame control valve with low flame setting
• Two piece burner with cast-iron heat distributing hood
• CS-4B3C bbq: 280mm x 520mm; 0.15cm2 cooking area
• 2mm 304 stainless steel splash guards

Overall Construction

• Heavy duty construction
• Welded 1.2mm 304 stainless steel front hob
• Front and side panels 0.9mm 304 stainless steel
• Splashback 1.2 mm 304 stainless steel
• Stainless steel legs with 55mm height adjustment range
• Secondary catchment tray 0.9mm stainless steel

Connections

• Gas 3/4” BSP male
• 180mm from right, 50mm from rear, 600mm from floor
• Supplied with gas regulator (specify Nat or LP on order)

Cleaning & Servicing

• Removable burner hoods and spillage bowls
• Secondary undertray to catch any additional waste
• Easy access to all parts & components from front
