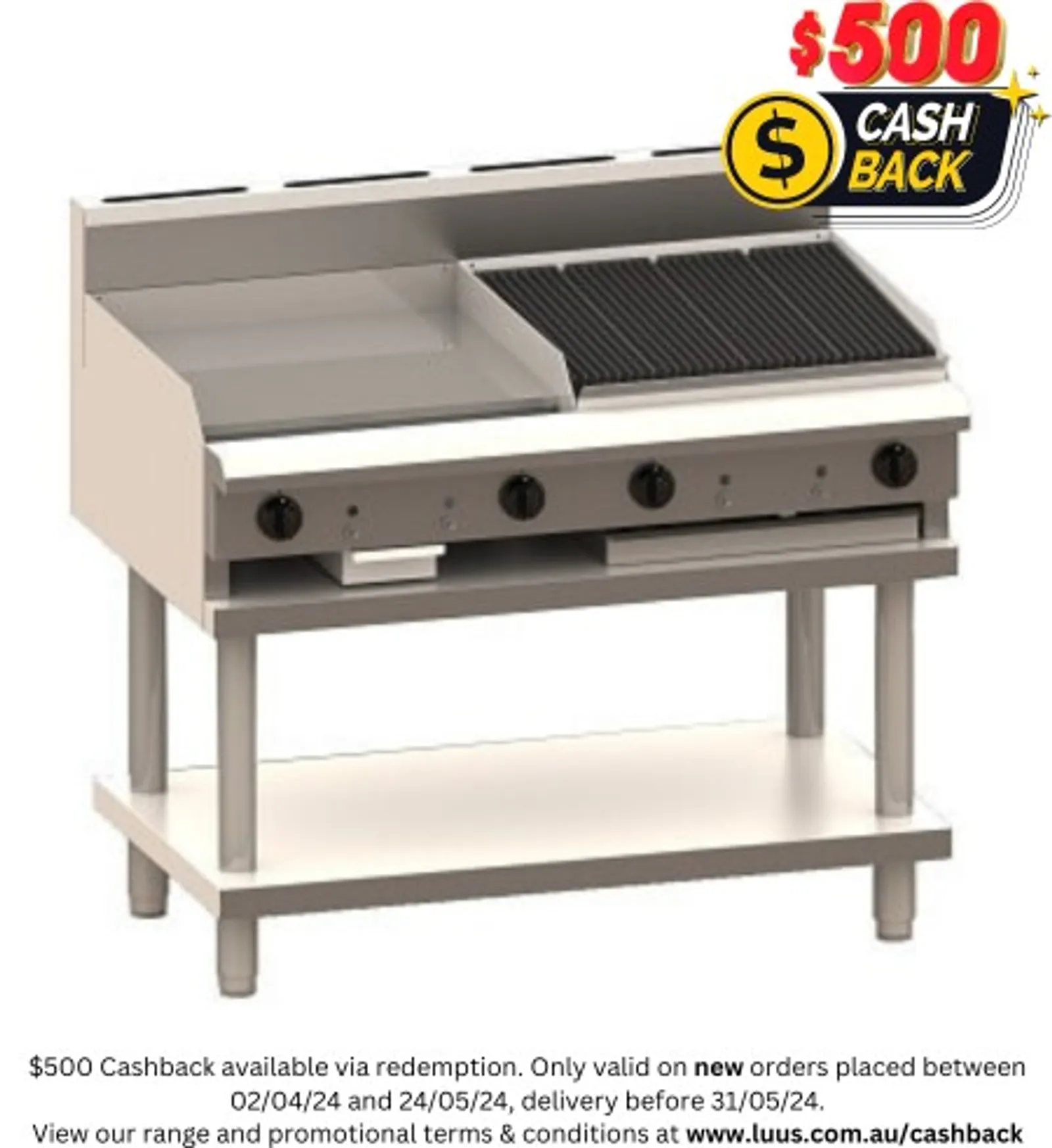

LUUS CS-6P6C - 600mm Griddle + 600mm Chargrill

CS griddles can be combined with chargrills for configurations ranging from 300mm up to 1200mm wide. Ample heat from the burners are spread evenly across the cooking 21mm thick mild steel surface. Chrome plating and ribbed finishes available as an option extra.

Griddle/Hotplate

• 18 mj burners with pilot, FFD and piezo ignition
• Variable flame control valve with low flame setting
• 16mm thick mild steel griddle plate
• Top weld sealed hotplate sections
• CS-6P6C plate: 590mm x 540mm; 0.32m2 cooking area
• 2mm 304 stainless steel splash guards
• Griddle oil bin 1.2mm stainless steel

Chargrill/Barbecue

• 33 mj burners with pilot, FFD and piezo ignition
• Variable flame control valve with low flame setting
• Two piece burner with cast-iron heat distributing hood
•  CS-6P6C bbq: 580mm x 520mm; 0.30m2 cooking area
• 2mm 304 stainless steel splash guards
• Chargrill undertray 0.9mm stainless steel

Overall Construction

• Heavy duty construction
• Welded 1.2mm 304 stainless steel front hob
• Front and side panels 0.9mm 304 stainless steel
• Splashback 1.2 mm 304 stainless steel
• Stainless steel legs with 55mm height adjustment range

Connections

• Gas 3/4” BSP male
• 180mm from right, 50mm from rear, 600mm from floor
• Supplied with gas regulator (specify Nat or LP on order)

Cleaning & Servicing

• Easy access to all parts & components from front
