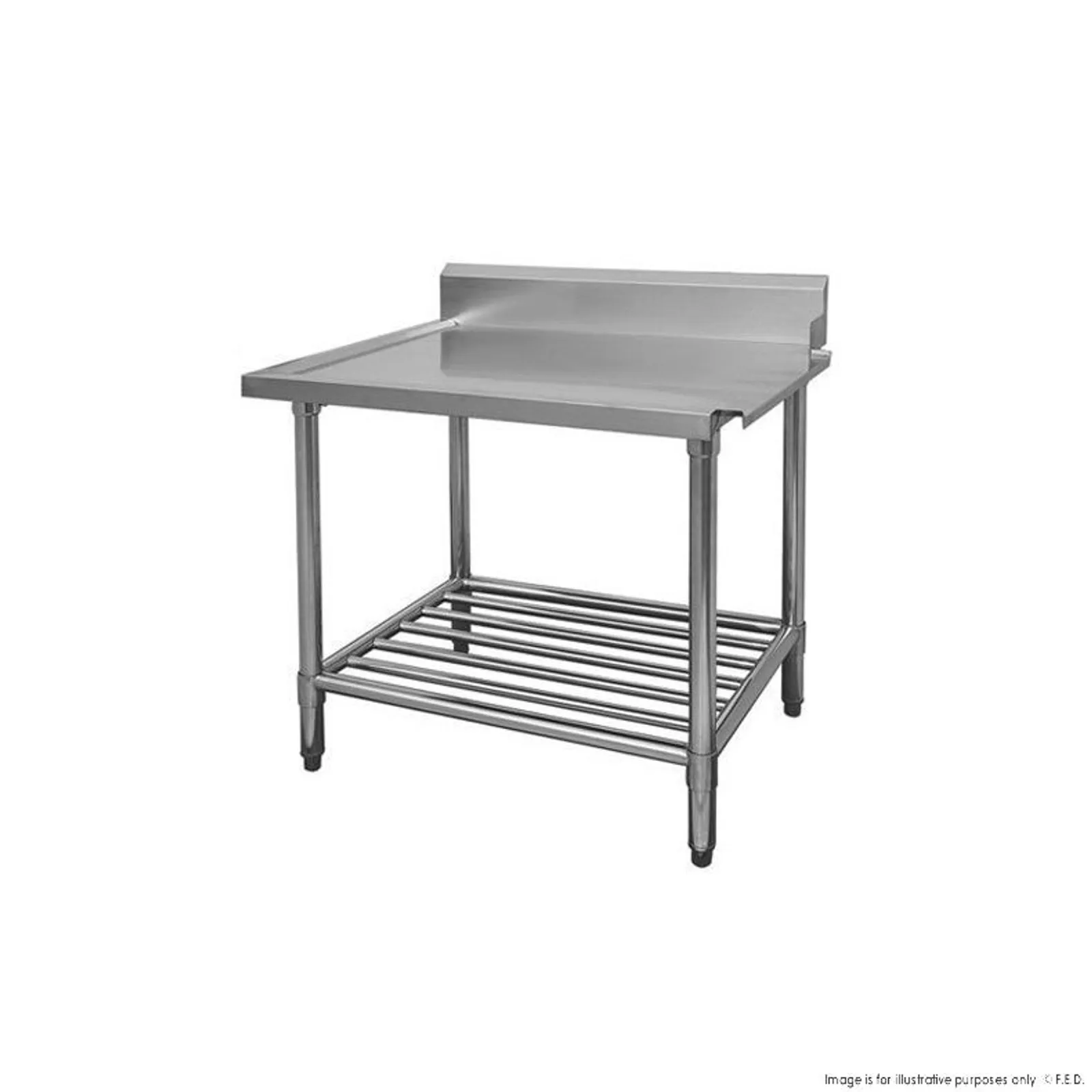

Modular Systems WBBD7-1800R/A - All Stainless Steel Dishwasher Bench Right Outlet

• 1800mm wide
• 700 mm deep × 900 mm high
• specially designed for quick & simple assembly
• come with instruction manual & tools
• supplied flat-packed for ease of transport
• 4 legs per bench - 2100 & 2400 mm wide benches have 6 legs
• 1.2 mm S/S

Splashbacks

• Stainless Steel backed • 180 mm high; 30 mm thick
• bevelled • fully enclosed

Legs

• 1.2 mm S/S; 42 mm Ø
• fully adjustable S/S polished disc feet that match the legs perfectly
• castor kits available (lockable)

Benchtops

• 1.2 mm material; SUS304 (18/8)
• lined with XPS board, 15 mm thick & S/S panel
• special S/S ‘U’ channel reinforcements under
• as the bench size increases so does the number of channels

Note:

LEFT side sink inlet bench

When facing the bench the dishwasher inlet & sinks are on the left side.

RIGHT side sink inlet bench

When facing the bench the dishwasher inlet & sinks are on the right side.
