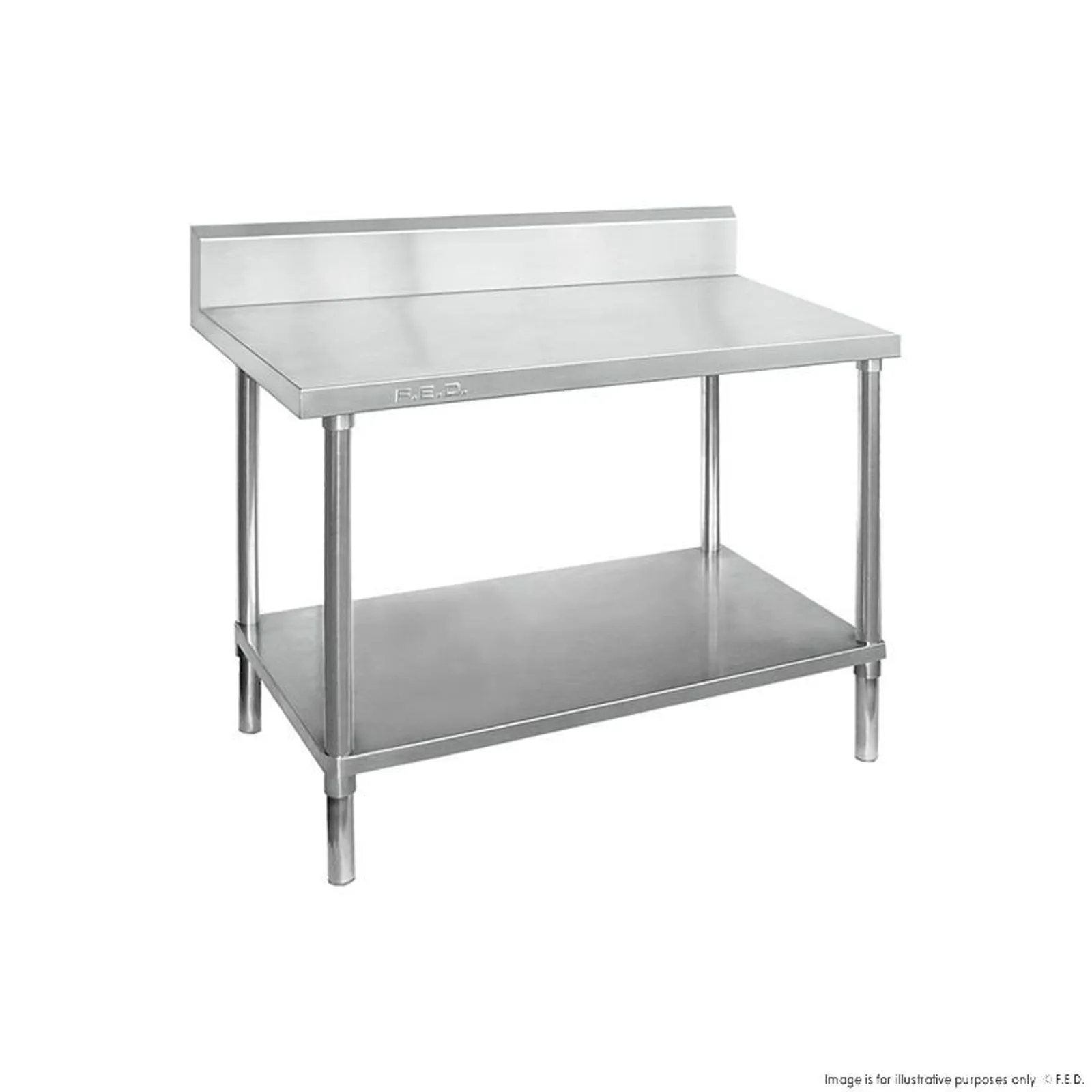

Modular Systems WBB7-0900/A - Workbench with Splashback

900mm Wide

Free optional leg brace instead of solid shelf; please specify leg brace on purchase order if required

OPTIONAL DRAWERS AVAILABLE; - See Stainless Steel Accessories

• 700 mm deep × 900 mm high
• Specially designed for quick & simple assembly
• Comes with instruction manual & tools
• Supplied flat-packed for ease of transport
• 4 legs per bench - 2100- & 2400-mm wide benches have 6 legs
• Locking drawers available

Legs

• 1.2 mm S/S; 42 mm
• Fully adjustable S/S polished disc feet that match the legs perfectly
• Castor kits available (lockable)

Benchtops

• 1.2 mm material; SUS304 (18/8)
• Llined with XPS board, 20 mm thick & S/S panel
• Special S/S ‘U’ channel reinforcements under
• As the bench size increases so does the number of channels

Undershelves

• Height of shelf is fully adjustable, also an extra shelf can be added
• 1.2 mm S/S
• Special ‘U’ channel reinforcements under to suit the bench type & size, and as the bench size increases so does the ‘U’ channel width; S/S 1.2 mm thick

Splashbacks

• Stainless steel backing
• All S/S lined & bevelled
• 150 mm high; 30 mm thick
