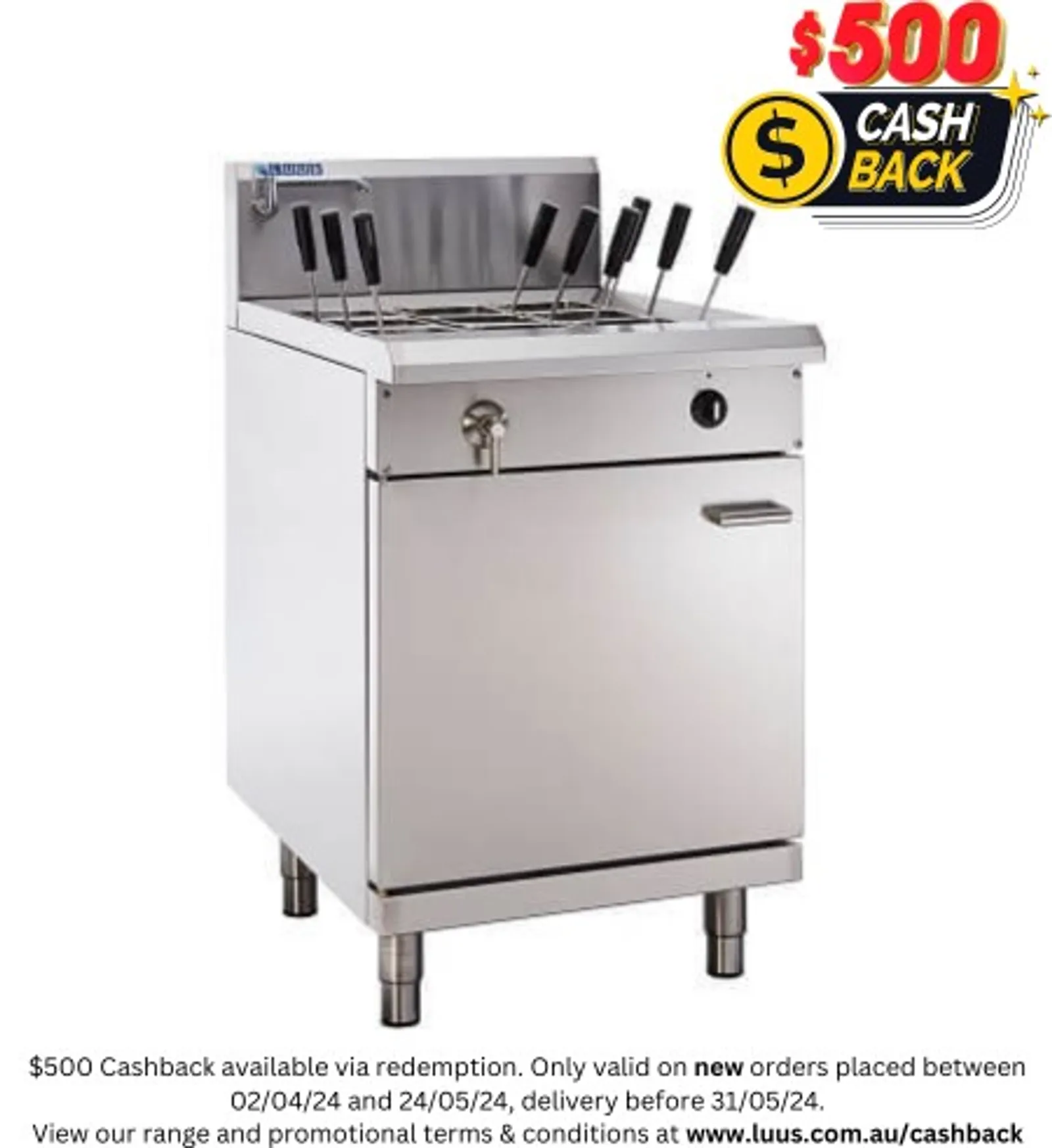

LUUS PC-60 - 9 Basket Pasta Cooker

Available in 6 basket and exclusive 9 basket wide models, our pasta cookers feature a thermostatically controlled burner for continuous operation, a 316 marine grade stainless steel tank, and an overflow system that automatically removes excess starch and helps purify water.

Pasta Cooker

• 78 mj jet burner with pilot, FFD and piezo ignition
• Adjustable thermostat accurately controls water temp
• Water purifying overflow system to remove excess starch
• High temperature cut-out safety mechanism
• Marine grade 1.5mm 316 stainless steel tank
• 50 litre tank capacity
• Tank filter insert 0.9mm 304 stainless steel
• Drain back basket stand 1.2mm 304 stainless steel
• Rear laundry arm with controls located on front panel
• Includes 6 baskets 0.7mm 304 perforated stainless steel
• Safety release tank drainage valve at bottom of unit

Overall Construction

• Heavy duty construction
• Constructed 0.9mm 304 stainless steel door
• Fiberfrax Durablanket insulation on both sides of tank
• Welded 1.2mm 304 stainless steel front hob
• Front and side panels 0.9mm 304 stainless steel
• Splashback 1.2 mm 304 stainless steel

Connections

• Gas 3/4” BSP male
• Gas 180mm from right, 70mm from rear, 150mm from floor
• Supplied with gas regulator (specify Nat or LP on order)
• Water inlet 1/2” copper tube
• Water 60mm from left, 70 mm from rear, 80mm from floor
• Drain 1” BSP male
• Drain 225mm from left, 210mm from front, 220mm floor

Cleaning & Servicing

• Easy access to all parts & components from front
• Removable baskets and inserts
