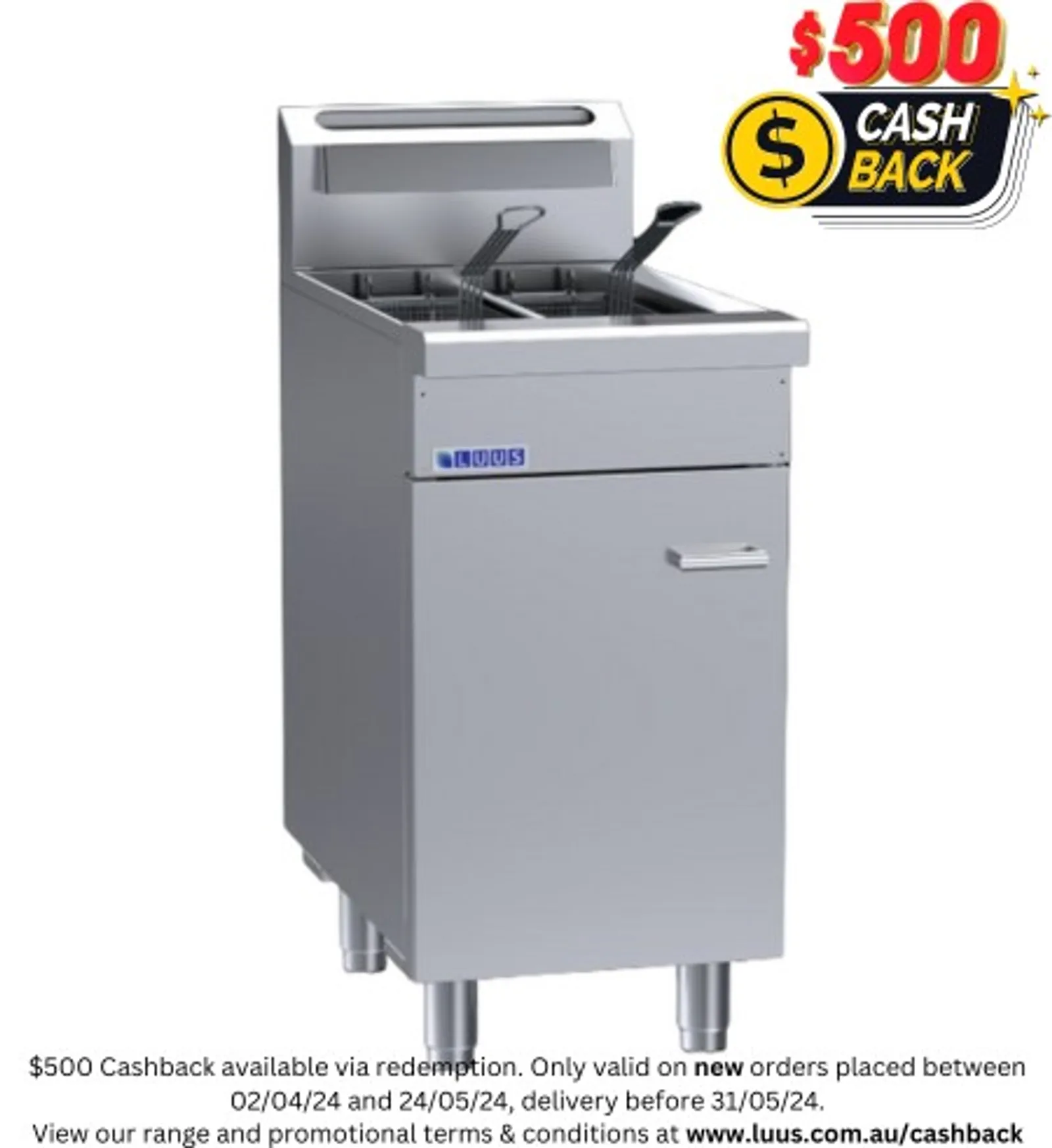

LUUS FSV-45 - 2 Basket Split V-Pan Fryer

FSV series fryers feature an easy to clean stainless steel split “V-pan” tank with a large cool zone. Premium components such as Fenwal thermostats improve accuracy and reliability, while efficient multi-jet burners optimise performance and recovery rates. Available in 450mm and 600mm wide models.

Split Pan Fryer

• 2 x 50MJ/h jet burners with pilot, FFD and piezo ignition
• Mechanically controlled thermostat
• Thermostat temperature range 100 - 200° C
• High temperature cut-out safety mechanism
• 1.5mm stainless steel stud weld efficient tank design
• 2 x 11.5 litre fry pot capacity
• Includes 2 stainless steel fryer baskets
• 0.9mm stainless steel perforated fish/base plate
• Tank drainage valves at bottom front of unit

Overall Construction

• Heavy duty construction
• 0.9mm 304 stainless steel double-skinned door
• High density Fiberfrax Durablanket insulation around tank
• Welded 1.2mm 304 stainless steel front hob
• Front panels 0.9mm 304 stainless steel
• Side panels 1.2mm 304 stainless steel
• Splashback 1.2 mm 304 stainless steel
• Includes stainless steel legs with 55mm adjustable range

Connections

• Gas 3/4” BSP male
• Gas 225mm from right, 55mm from rear, 165mm from floor
• In-built gas regulator (specify Nat or LP on order)
• Drains 1 1/4” BSP male and 170mm in from both left and right, 200mm from front, 415mm from floor

Cleaning & Servicing

• Easy access to all parts & components from front
• Open pot easy-to-clean design
• Rear basket support bar
• Removable baskets and insert
