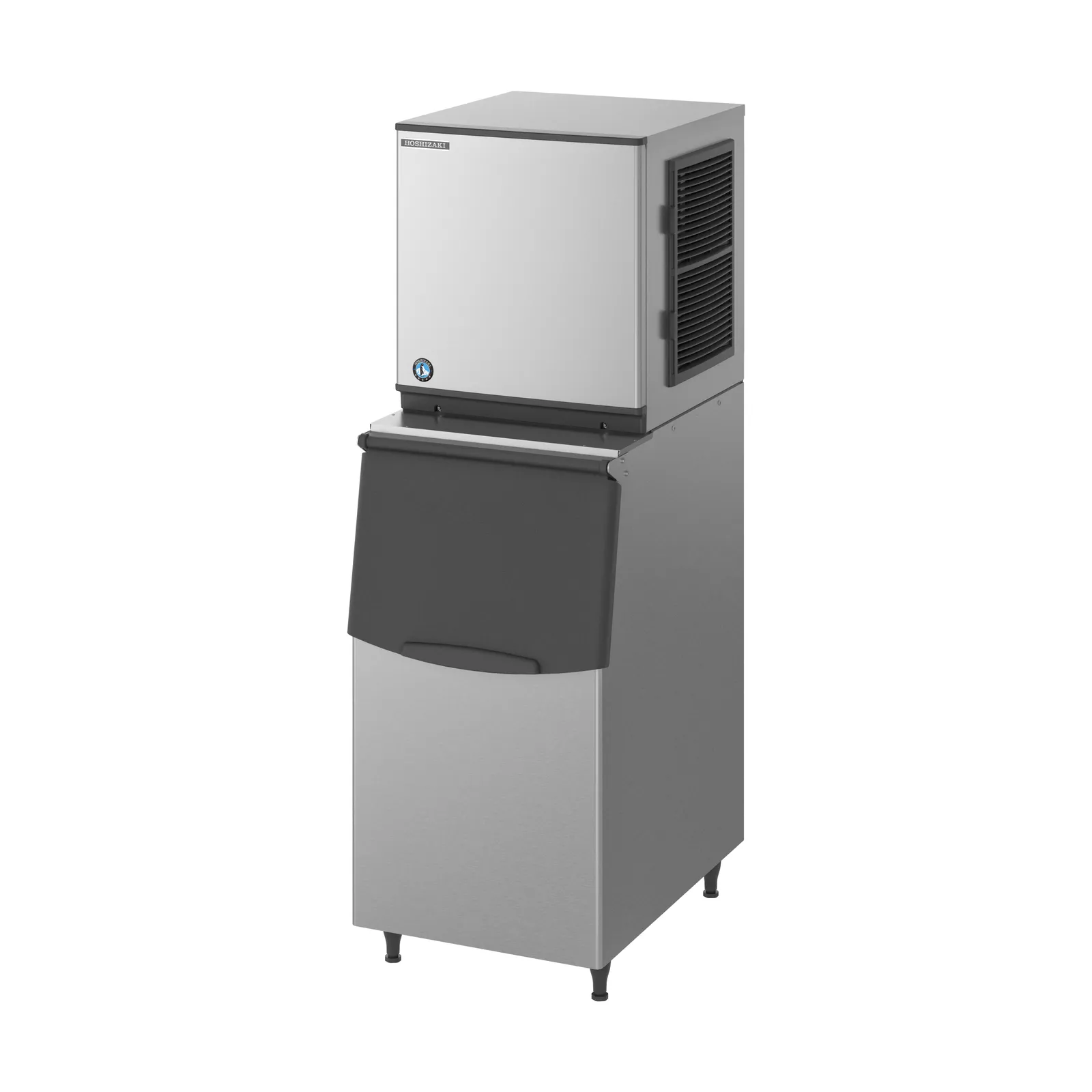

Hoshizaki KMD-201AB Crescent Ice Maker 175kg/day - BUNDLE

SKU: HOS-KMD-201AB-BUNDLE

Hoshizaki KMD-201AB Crescent Ice Maker 175kg/day

Production Capacity per 24hours	Approx. 200 kg @10°C Air temp; 10°C Water
	Approx. 175 kg @21°C Air temp; 15°C Water
	Approx.140 kg @ 32°C Air temp; 21°C Water
Max Storage Capacity	Select Bin and Kit
Freeze Cycle Time	Approx. 30.5(AT. 21 ·c, WT. 15°C)
Ice Production Per cycle	Approx. 3.7 kg / 416pcs(AT. 21’C, WT. 15’C)
Dimensions	560mm (W) x 625mm (D) x 610mm (H)
	(Not incl.Bin Sw)
Cooling	Air
Weight Net/Gross (kg)	57 / 73
AC Supply Voltage	1 PHASE 220-240/230V 50/60 Hz
Amperage	Running: 3.0/3.6A Starting: 25/25A
Refrigerant Charge	R404A / 520g
Operating Conditions	Ambient Temp.: 7-40°C
	Water Supply Temp.: 7-35°C
	Water Supply Pressure: 0.07-0.8MPa (0.7-8bar)
	Voltage Range: ±6%

Call for Price

Hoshizaki KMD-201AB Crescent Ice Maker 175kg/day

This modular ice maker produces clear, crescent shaped ice that is extremely versatile. It includes a double-sided stainless steel evaporator, which requires fewer cycles to produce a full bin of ice, thereby reducing energy consumption.

Features:

Individual premium crescent cube with no ice bridging.
Exceptionally hard crystal clear cubes that melt slowly.
Durable stainless steel exterior.
Slide in air filter for easy cleaning – maintaining performance efficiency.
Patented double sided stainless steel evaporator fro all water conditions – produces more ice in less cycles.
Audible alarms.
3 year parts & labour on entire unit, 5 year parts & labour on the evaporator,5 year (parts only) on compressor and air cooled condenser coil.
