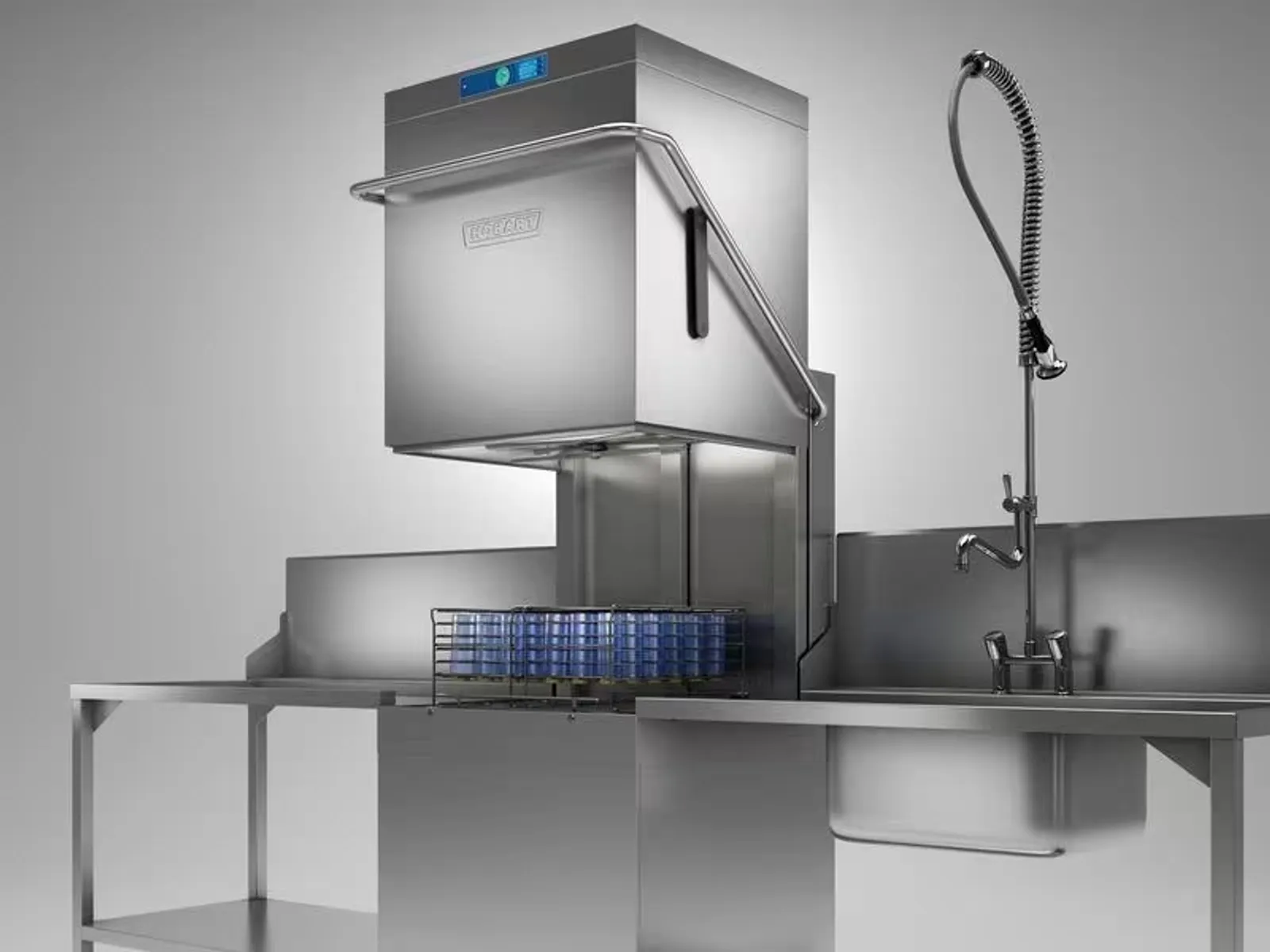

Hobart PROFI AMXXL-R - Hood-Type Dishwasher With Drain Heat Recovery

AMXXL with DRAIN HEAT RECOVERY - cold water connection

The extra-wide PROFI hood-type model is predestined for reliable cleaning of baker‘s baskets, butcher‘s crates, trays, and gastronorm bowls.

• Hood-type dishwasher for straight through or corner operation
• Nominal capacity up to 70 racks/h or 1,680 plates/h (with optional P-XL rack) or 2,520 glasses/h, 560 sheets/h, 140 1/1 GN-boxes/h, 70 EN-boxes/h
• Large chamber with 650 x 500 mm usable space
• Extra large loading height of 540 mm
• 6 automatic cycles: short, standard, intensive, starch-removal, permanent, hygiene
• Multi-Setting: booster capacity may be reduced from 12.4 kW to 6.2 kW if connected with hot water
• Heat and noise insulated hood
• Strainer soil sensor
• Refill signal (detergent / rinse aid)
• Self-cleaning programme
• USB-interface for comfortable download of operational data
• Ready to install - completely equipped: fill / drain hose, electrical cable, detergent dispenser, rinse aid dispenser, rinse pump, drain pump and back-flow preventer
• Tank, frame, wash / rinse arms and panels are stainless steel 1,4301
• 1 plate rack P-18-12
• 1 tray rack T-06-09
• 1 cutlery rack C-01-07

Feature:

• XL wash chamber: the large hood and chamber provide best wash results, e.g. for
  - up to 24 plates/rack
  - up to 8 sheets 600 x 400 mm
  - up to 8 trays 650 x 500 mm
  - up to 2 1/1 GN-boxes
• VISIOTRONIC-TOUCH control: colour touchscreen (displays text and graphic) in conjunction with single-button control and remaining cycle time indication
• SMARTCONNECT app: controlling your warewash operation with smart technology: status and messages, usage and operating costs, hygiene, service and consumables order
• SENSO-ACTIVE resource management: constantly measures the quality of the wash water and keeps the amount of rinsing needed in each rinse cycle to the minimum in order to guarantee a fully hygienic wash result.
• Exhaust energy storage: the fully enclosed 4-sided hood keeps steam and energy inside the system: energy saving up to 3 kW, less humidity in the kitchen area and better hygienic conditions.
• CLIP-IN wash and rinse arms: wash and rinse arms can be removed with one hand and without any tools.
• USB-interface: download of operational data via USB
• GENIUS-X² fine filter system: advanced filter system with prewash function reduces detergent consumption up to 35 %.

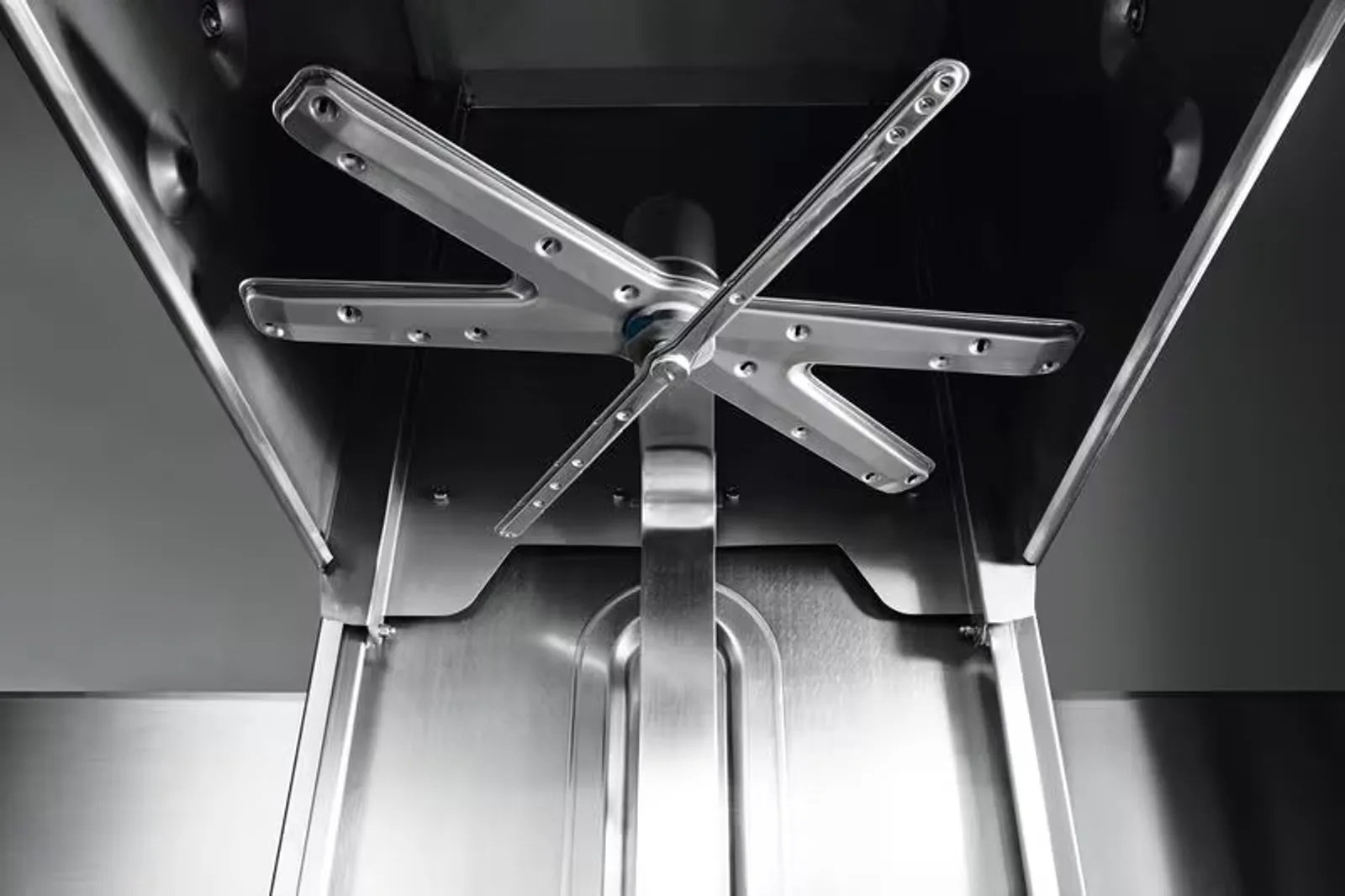

• ROTOR-X wash system: separate rotating upper & lower 4-spoke wash arms deliver dynamic wash power.
• VAPOSTOP (optional): prevents vapour escaping from the machine when the hood is opened.
• Intelligent energy management: the available energy is used continuously. Thus, at a low total loading value the heating time gets reduced.
• Interlocked strainer: prevents operation without tank strainer.
• EASY-CLEAN concept: blue markings in the machine help the operator to identify the components which require cleaning.
• Watermark approved to WMTS-101:2018, Cert. WMKT21944
