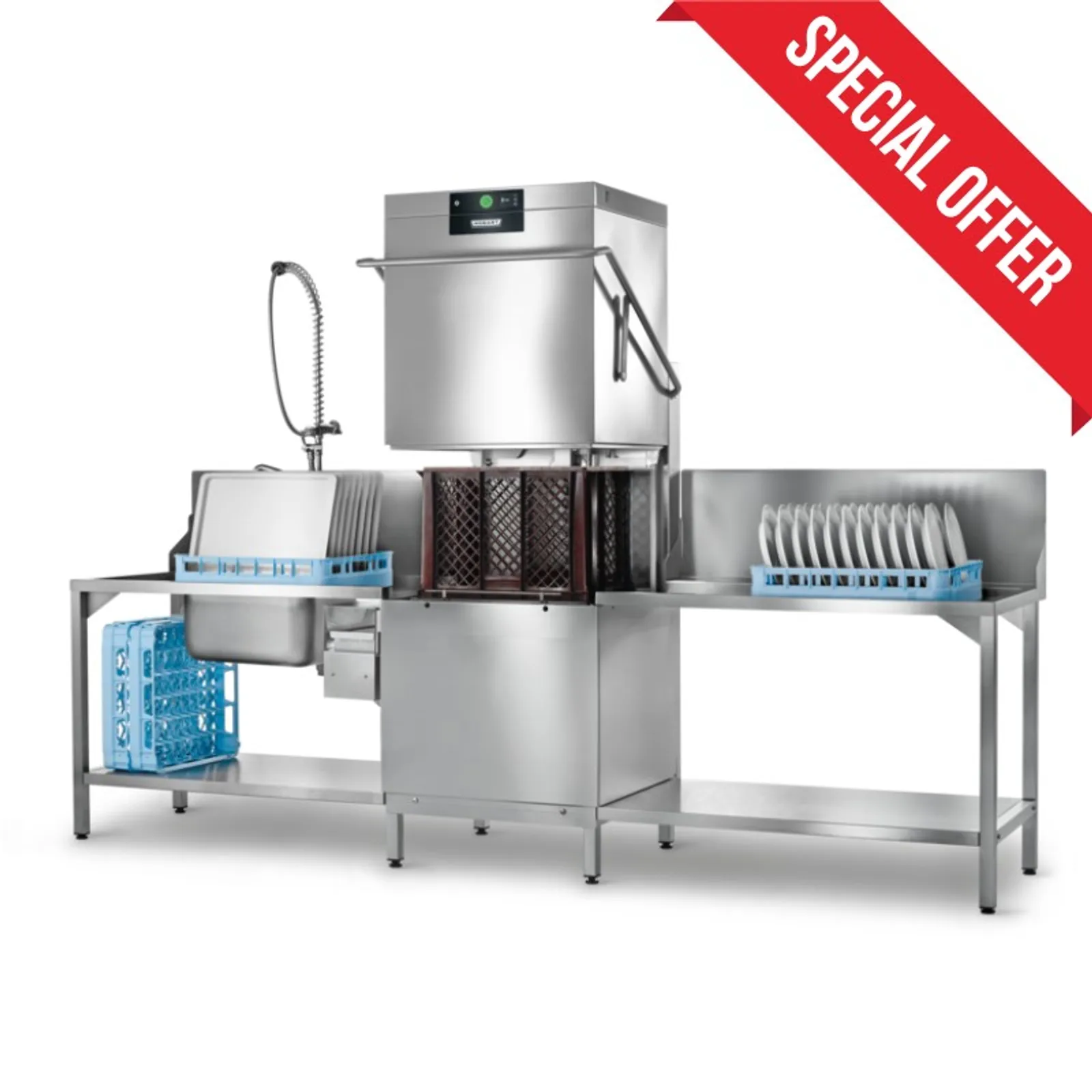

Hobart PREMAX AUPL/C Wide Body Hood-Type Dishwasher with ASR

The AUPL hood-type model convinces with its extra-wide wash chamber for cleaning large-sized wash ware. The PERMANENT-CLEAN automatic soil removal ensures that all coarse soil is pumped out of the machine into an external strainer, which eliminates manual pre-washing.

• Hood-type dishwasher with switchable high pressure wash for straight through or corner operation
• Nominal capacity up to 70 racks/h, 1,680 plates/h (with optional P-XL rack), 2,520 glasses/h, 560 sheets/h, 140 1/1 GN-boxes/h, 70 EN-boxes/h
• Large chamber with 660 x 500 mm usable space
• Extra large loading height of 540 mm
• 4 wash cycles - 52, 70, 170 & 180 seconds
• Hygiene programme: for removal of calcium carbonate and other deposits from wash chamber
• Multi-Setting: booster capacity may be reduced from 12.4 kW to 6.2 kW if connected with hot water
• Heat and noise insulated hood
• Strainer soil sensor
• Refill signal (detergent / rinse aid)
• Self-cleaning wash system - clip in combined wash and rinse arm
• Ergonomic all round handle
• Multi-purpose rack support guide
• Wi-Fi connectivity for wash data download and reporting
• USB-interface for comfortable download of operational data
• VAPOSTOP-ER (optional) with exhaust heat recovery to minimise machine operating costs - SEED approval for ventless installations in most situations - conditions apply
• Ready to install - completely equipped: fill / drain hose, electrical cable, detergent dispenser, rinse aid dispenser, rinse pump, drain pump and back-flow preventer
• Tank, frame, wash / rinse arms and panels are stainless steel 1,4301
• 1 plate rack P-18-12
• 1 tray rack T-06-09
• 1 cutlery rack C-01-07

Features:

• PERMANENT-CLEAN automatic soil removal: innovative filter system eliminates manual pre-cleaning. Soil is immediately removed into an external strainer, which saves operating costs and protects the machine.*
• VISIOTRONIC-TOUCH control: colour touchscreen (displays text and graphic) in conjunction with single-button control and remaining cycle time indication
• SMARTCONNECT app: controlling your warewash operation with smart technology: status and messages, usage and operating costs, hygiene, service and consumables order
• XL wash chamber: the large hood and chamber provide best wash results, e.g. for
• up to 24 plates/rack
• up to 8 sheets 600 x 400 mm
• up to 8 trays 660 x 500 mm
• up to 2 1/1 GN-boxes
• SENSO-ACTIVE resource management: constantly measures the quality of the wash water and keeps the amount of rinsing needed in each rinse cycle to the minimum in order to guarantee a fully hygienic wash result.
• Eco programme: switchable steam rinse cycle reduces fresh-water consumption to 1.4 l/cycle. Saving of up to 44 % water and chemicals.
• VAPO-ACTIVE steam washing: significantly less manual pre-cleaning and second runs by intensive wash cycles with steam.
• POWER-PLUS wash programme: selectable high-pressure programme to wash heavily soiled wash items.
• Exhaust energy storage: the fully enclosed 4-sided hood keeps steam and energy inside the system: energy saving up to 3 kW, less humidity in the kitchen area and better hygienic conditions.
• CLIP-IN wash and rinse arms: wash and rinse arms can be removed with one hand and without any tools.
• ROTOR-X wash system: separate rotating upper & lower 4-spoke wash arms deliver dynamic wash power.
• VAPOSTOP (optional): prevents vapour escapingfrom the machine when the hood is opened.
• AUTO-HOOD LIFT (optional): press button to close. Opens automatically at end of cycle.*
• Intelligent energy management: the available energy is used continuously. Thus, at a low total loading value the heating time gets reduced.
• Interlocked strainer: prevents operation without tank strainer.
• EASY-CLEAN concept: blue markings in the machine help the operator to identify the components which require cleaning.
• Watermark approved to WMTS-101:2018, Cert. WMKT21944

* If Auto Hood Lift is included, the ASR must be mounted on the Left Side only.
