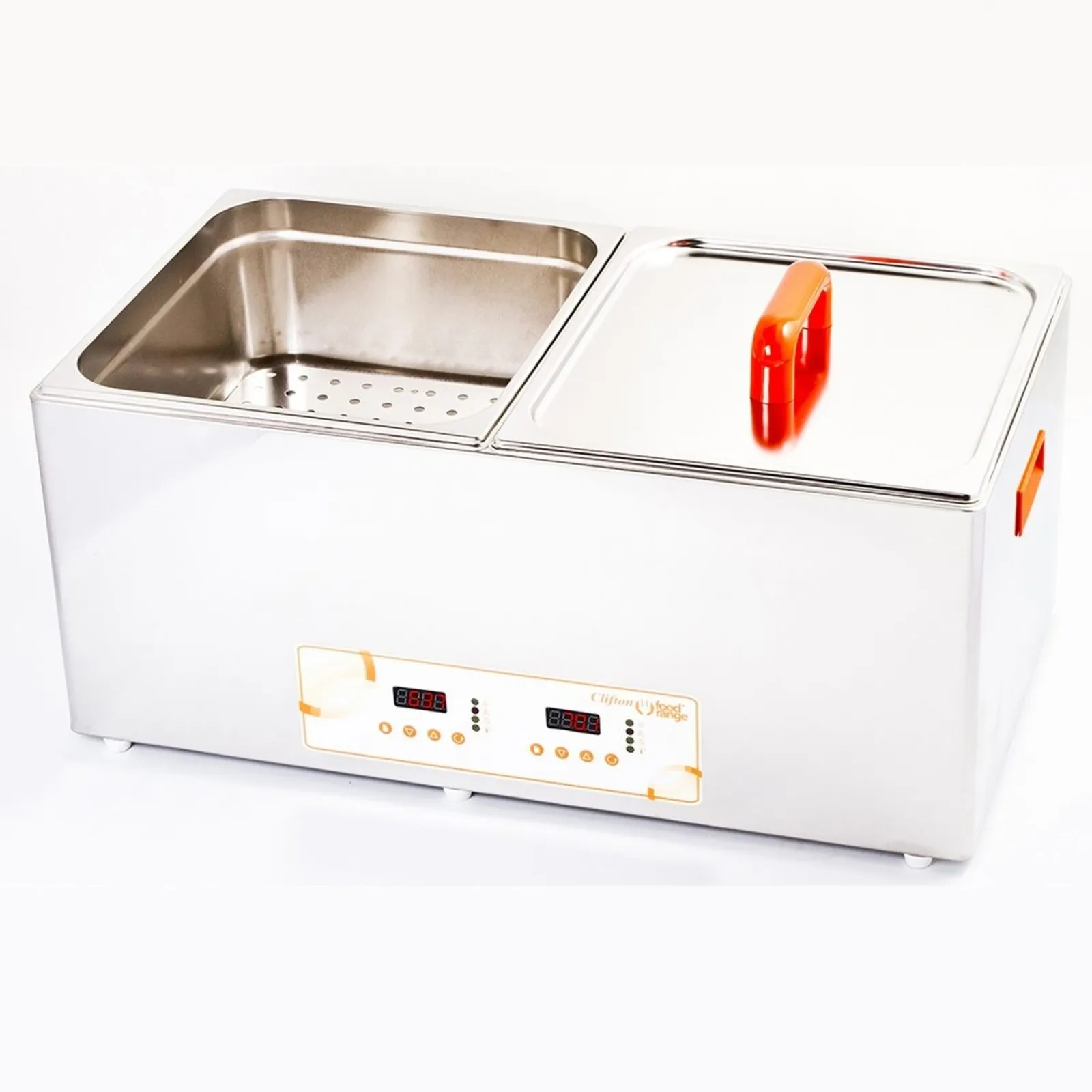

Clifton CFDU02X14D 14 Litre + 14 Litre Digital Duobath

Using the same high precision controllers found on all other Clifton Food Range® products, accuracy and repeatability are guaranteed. Actual temperature is clearly displayed to 0.1°C.

If required, the integrated timer on each controller can be set between 1 minute and 99 hours. There is audio/visual notification at the end of the set period after which the bath still continues to operate at the set temperature.

Current time and temperature settings are retained in memory even after ‘power off.’

As with all Clifton duobaths™, each side can be operated at two different temperatures simultaneously and with two different liquids e.g. water in one side and oil in the other. To minimise countertop use, the drain taps are conveniently located at the rear of the bath.

Clifton CFDU02X14D 14 Litre + 14 Litre Digital Duobath Features:

• Temperatures can be easily and rapidly set with the push button, wipe clean control panel. The entire case is constructed from high quality stainless steel. If the water drops below the recommended minimum level or the unit is inadvertently switched on without being filled with water, ‘FILL’ appears on the display as a visual alert and gives run dry protection.

• If desired it is possible to switch off one of the controllers to allow only one side of the duobath™ to be used.

• Side lifting handles make it easy to carry the bath around the kitchen and the product is supplied with two lids which have easy grab insulated handles. The bath is also supplied with two removable stainless steel perforated shelves which provide effective distribution of heat uniformly throughout the chamber by convection.

• Drain tap on each chamber.

• In common with all Clifton baths, the product is powered from a standard 13 amp wall socket.

• Supplied complete with drain tap, lids and stainless steel shelf.


OPTIONAL ACCESSORIES

The stainless steel partitions allow the working area of the bath to be divided for portion control. They separate the food into different sections for easy identification when cooking. They can also separate products that have just been placed into the bath (and therefore not regenerated) from those ‘on hold’ ready to go.

Partition racks are available for this water bath in the following sizes:

• CFPAR130 – Mini Partition – 130mm

• CFPAR270 – Short Partition – 270mm


PERFORMANCE

• Display/resolution: Digital LED/0.1°C

• Temp. range: Ambient + 5°C – 95°C

• Temp. setting: Push button

• Stability/uniformity: ± 0.2°C/± 0.1°C

• Display/resolution: Digital LED/1 minute increments

• Duration: 1 minute – 99 hours

• Cycle end: Audio/visual alert

• Electrical supply: 230V

• Power consumption: 2kW

• Safety: Visual ‘FILL’ message on low water level, Run-dry protection

DIMENSIONS

• Overall (HxWxD): 290 x 660 x 361 mm

• Chamber (HxWxD): 150 x 300 x 330 mm

• Allow 130mm at rear of unit for mains cable/ventilation/tap & hose


PLEASE NOTE IMAGE IS FOR REFERENCE PURPOSES ONLY
