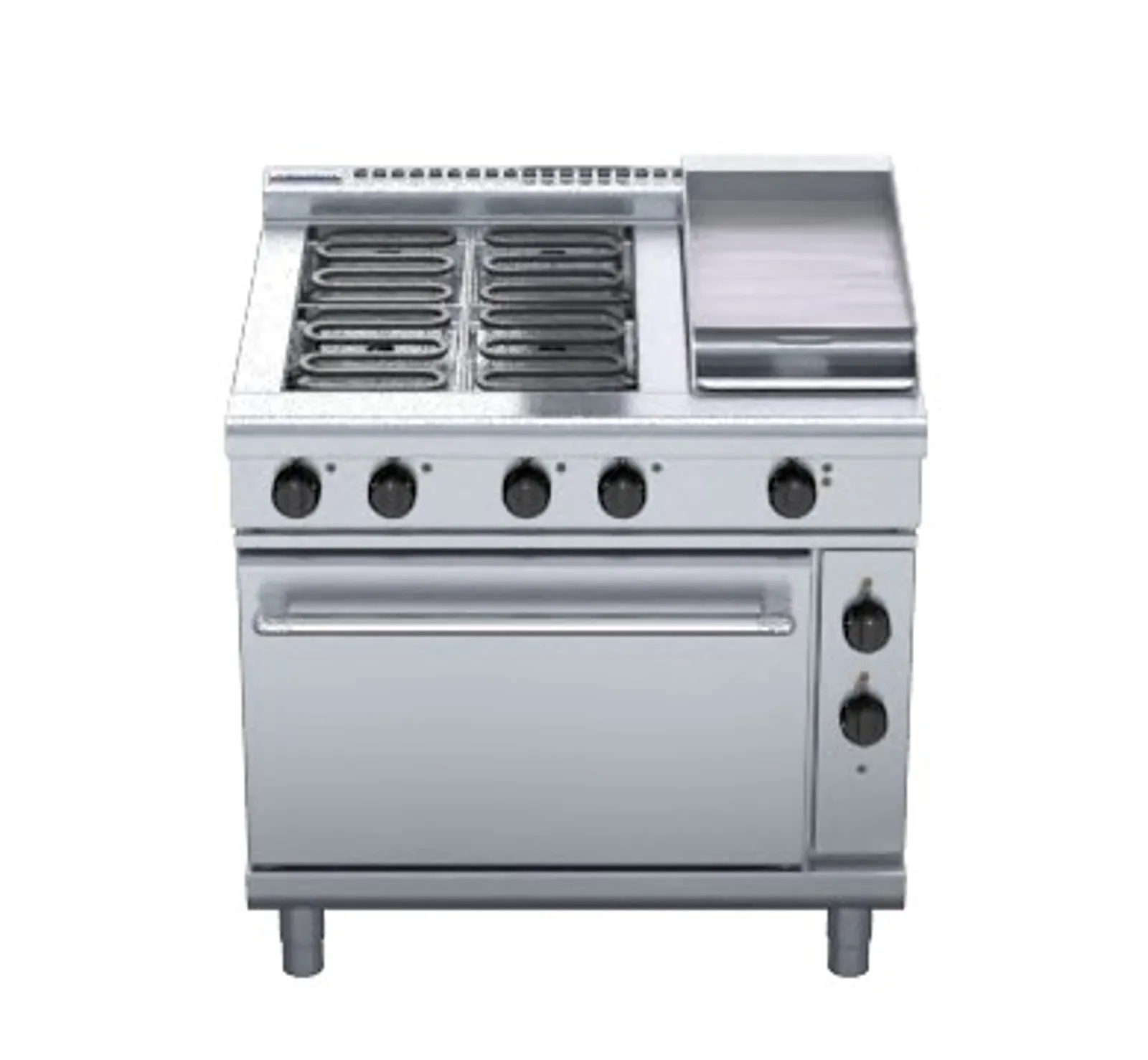

Waldorf 800 Series RNL8613E - 900mm Electric Range Static Oven Low Back Version

Overall Construction

• Galvanized steel chassis

• Welded hob with 1.5mm 304 stainless steel bull nose

• Splashback and hob sides 1.2mm 304 stainless steel

• Front panels and oven sides 0.9mm 304 stainless steel

• 150mm legs in 63mm dia. heavy-duty 1.2mm 304 stainless steel with adjustable feet

Cooktop

• 2.4kW open radiant elements in heavy-duty welded element frames

• Stainless steel spill trays

• Hot plate elements with machine finished 8mm steel plate (optional extra)

• 12mm thick mild steel griddle plates

• 2.5mm 304 stainless steel griddle splash guards

• Aluminised steel internal construction

Griddle sections are standard on RH side. Available on LH side or

centre to order.

Oven

• Fully welded and vitreous enamelled oven liner

• GN 2/1 capacity with 4 position racking

• Heavy-duty easy remove heavy wire chrome rack supports

• Cast iron even heat oven sole plate

• 6.5kW heating elements

• Welded frame drop down door with heavy-duty spring hinge system

• 0.9mm 304 stainless steel door outer

• 1.0mm press formed vitreous enamelled door inner

• High density fibreglass insulated

• Stay cool stainless steel door handle with cast metal handle mounts

• Supplied with two chrome wire oven racks
