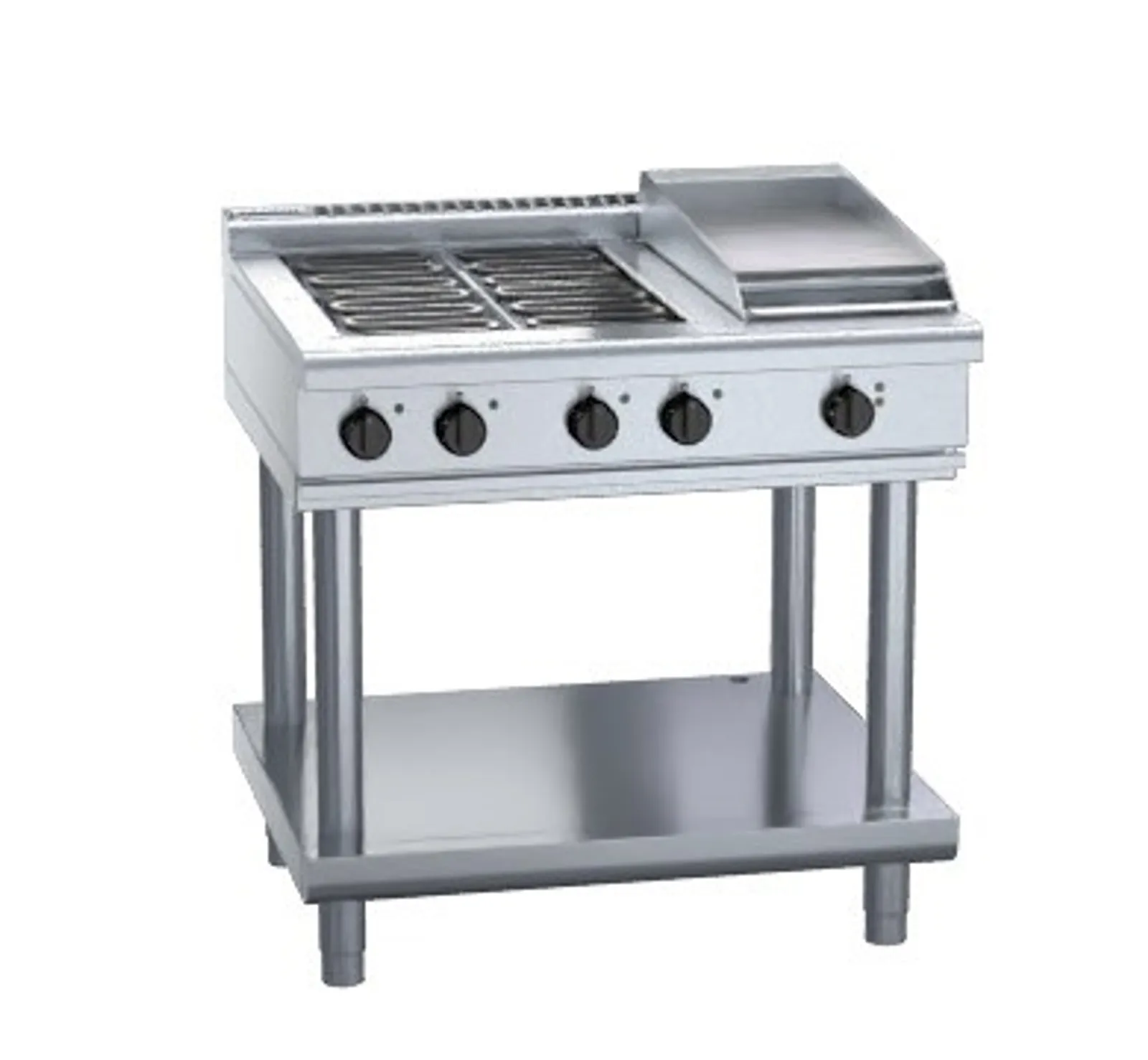

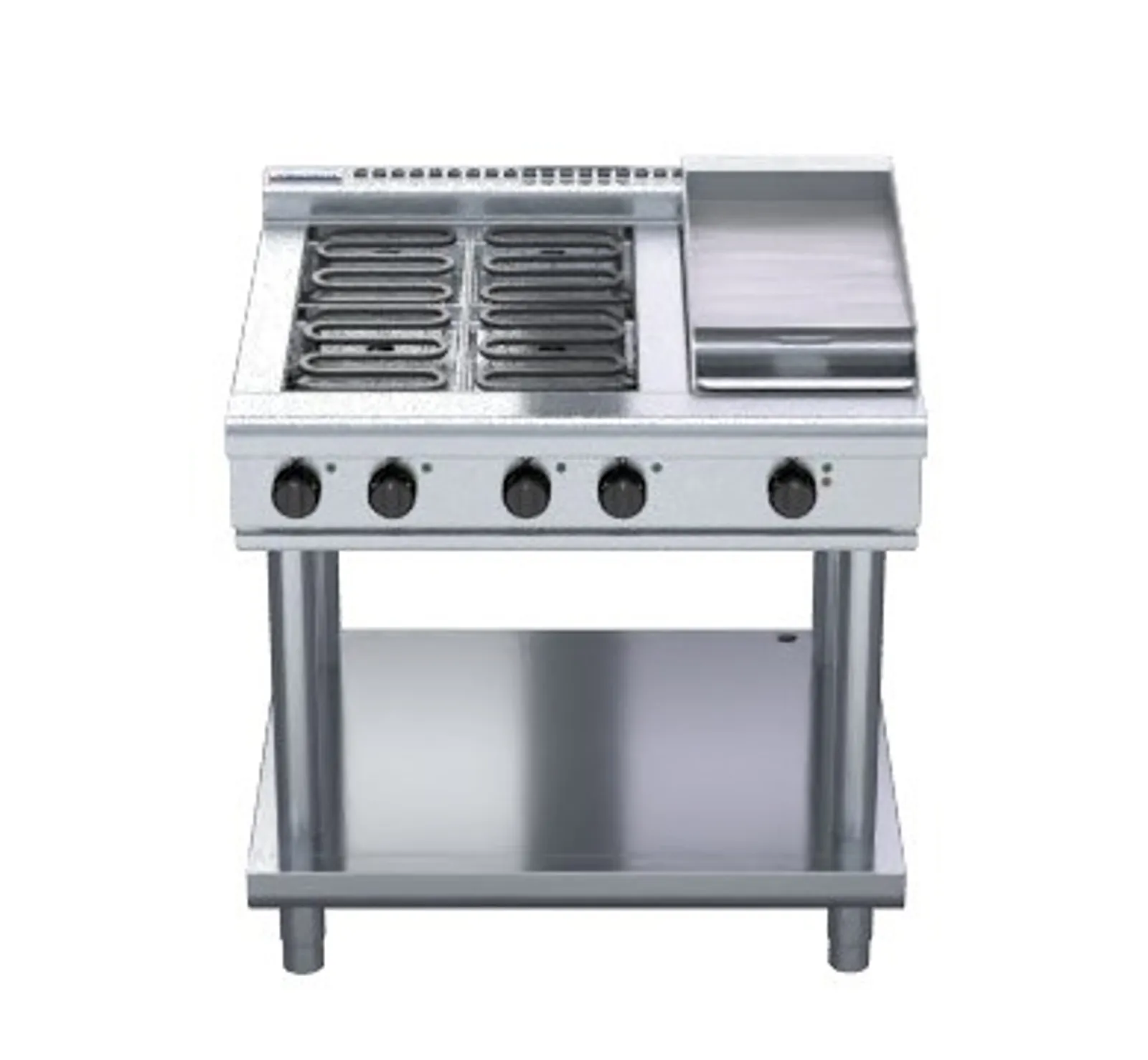

Waldorf 800 Series RNL8603E-LS - 900mm Electric Cooktop Low Back Version Leg Stand

Overall Construction

Cooktop

• Welded hob with 1.5mm 304 stainless steel bull nose

• Splashback and side panels 1.2mm 304 stainless steel

• Front panels 0.9mm 304 stainless steel

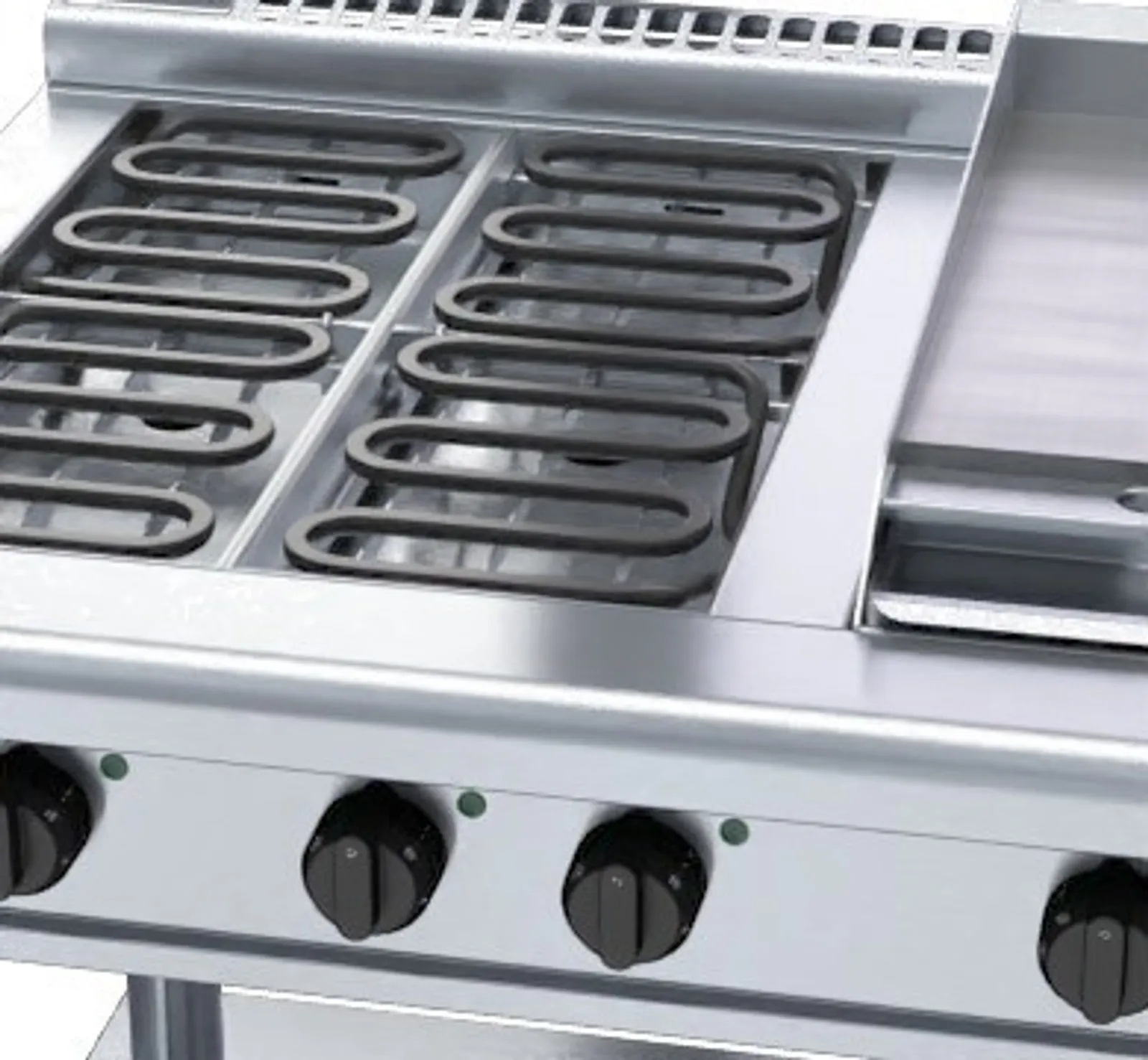

• 2.4kW open radiant elements in heavy-duty welded element frames

• Vitreous enamelled element module and hob spill trays

• Hot Plate elements with machine finished 8mm steel plate (optional extra)

• 12mm thick mild steel griddle plates

• 2.5mm 304 stainless steel griddle splash guards

• Aluminised steel internal construction

Leg Stand (supplied as –LS model)

• Fully modular for matched suite finish
• Framed top for connection to Cooktop
• 63mm dia. heavy-duty 1.2mm 304 stainless steel legs with adjustable feet
• Fully modular framed stand shelf with 0.9mm 304 stainless steel finish
• Quick assembly design (no tools required)

Controls

Cooktop

• Large easy use control knob - heat resistant reinforced

• Easy view control settings on knob

• Radiant elements with energy regulator controls

• Hot Plate elements with energy regulator controls

• 50-320˚C thermostat per 300mm griddle section

• Indicator lights for power and heating for each element control

Cleaning and Ser vicing

• All models with easy clean stainless steel external finish

• Removable vitreous enamelled element module and hob spill trays

• Hinge up element and griddle sections

• Access to all parts from front of unit

• Refrigerated Base condenser removable through front of unit
