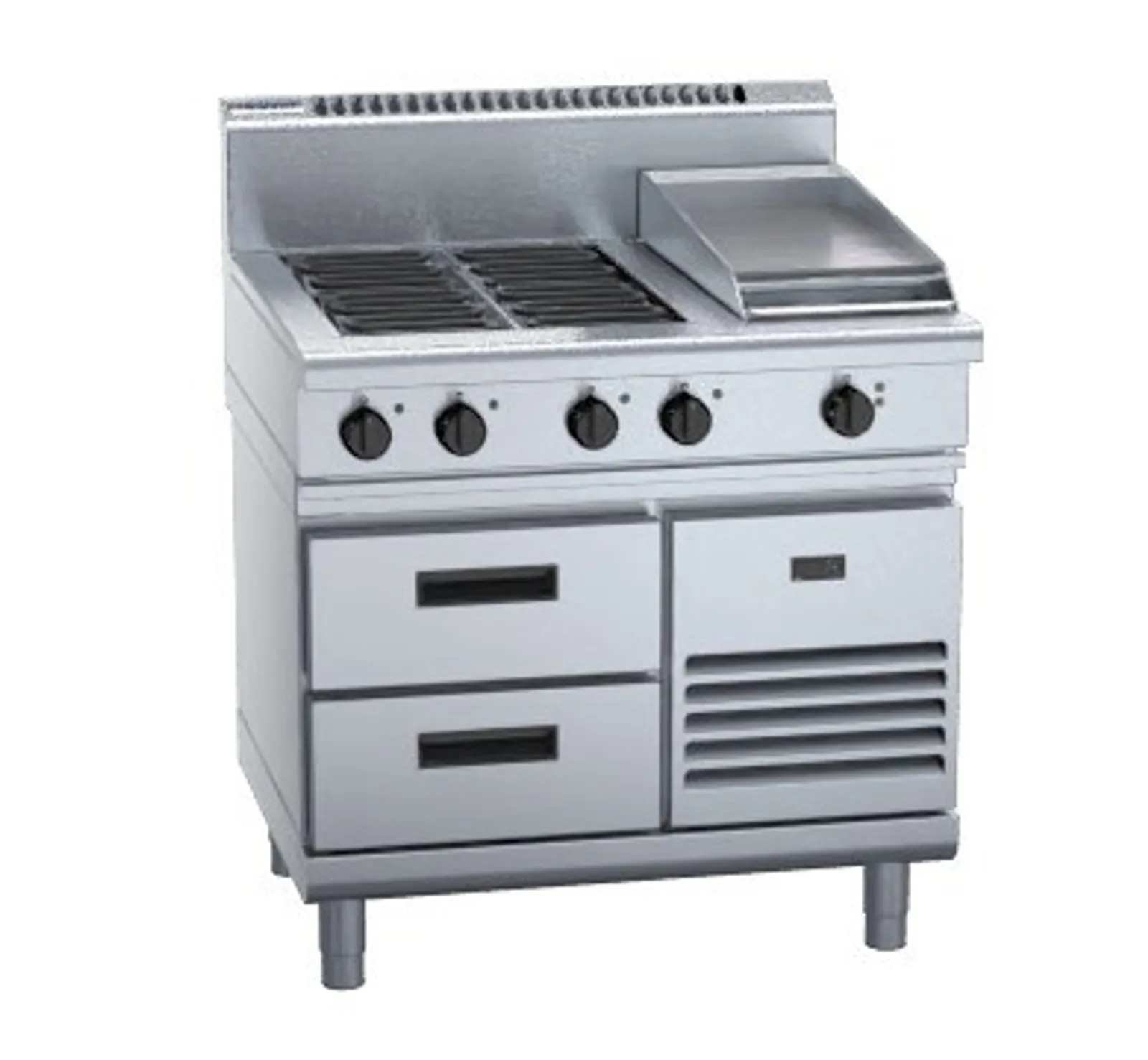

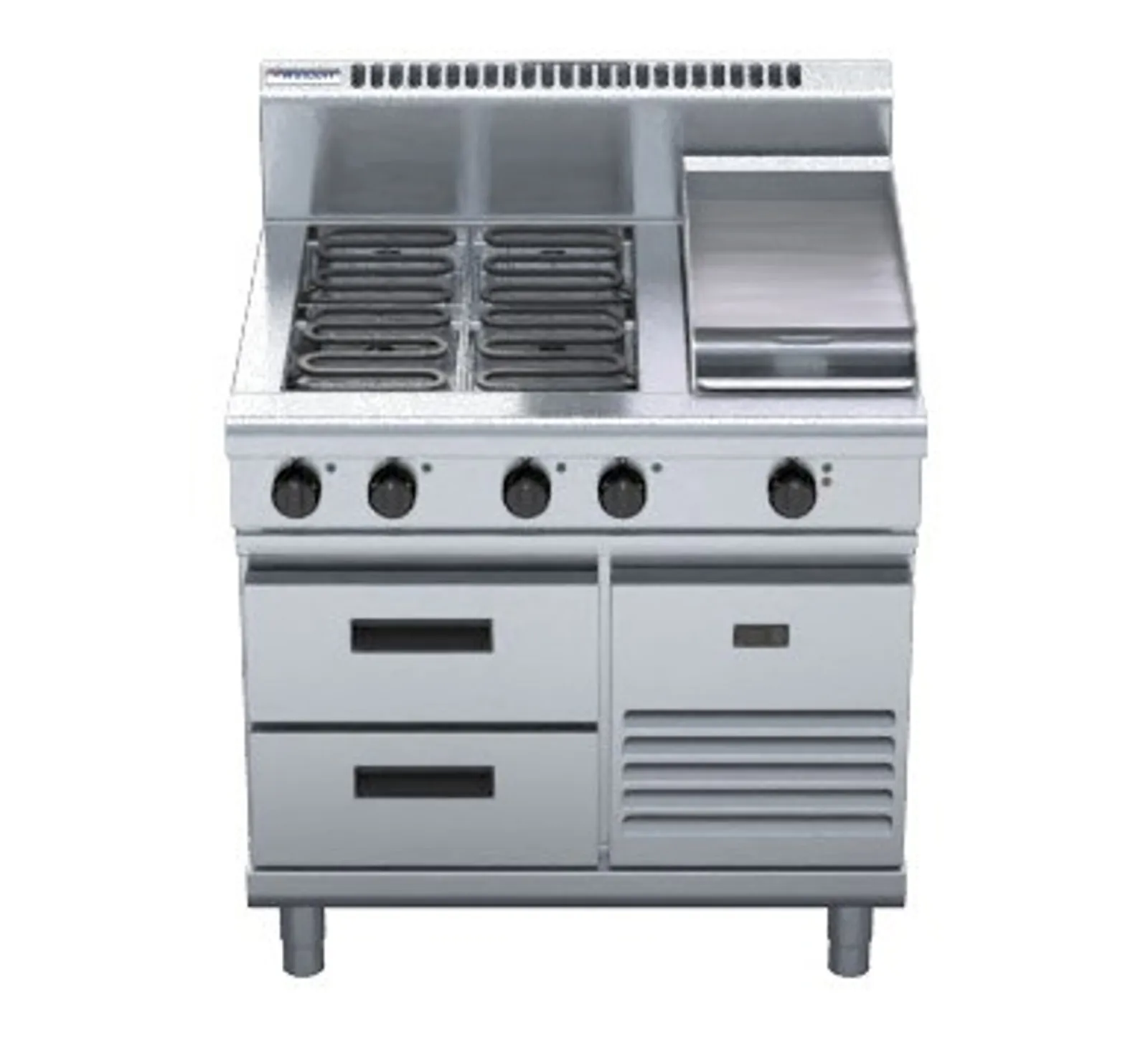

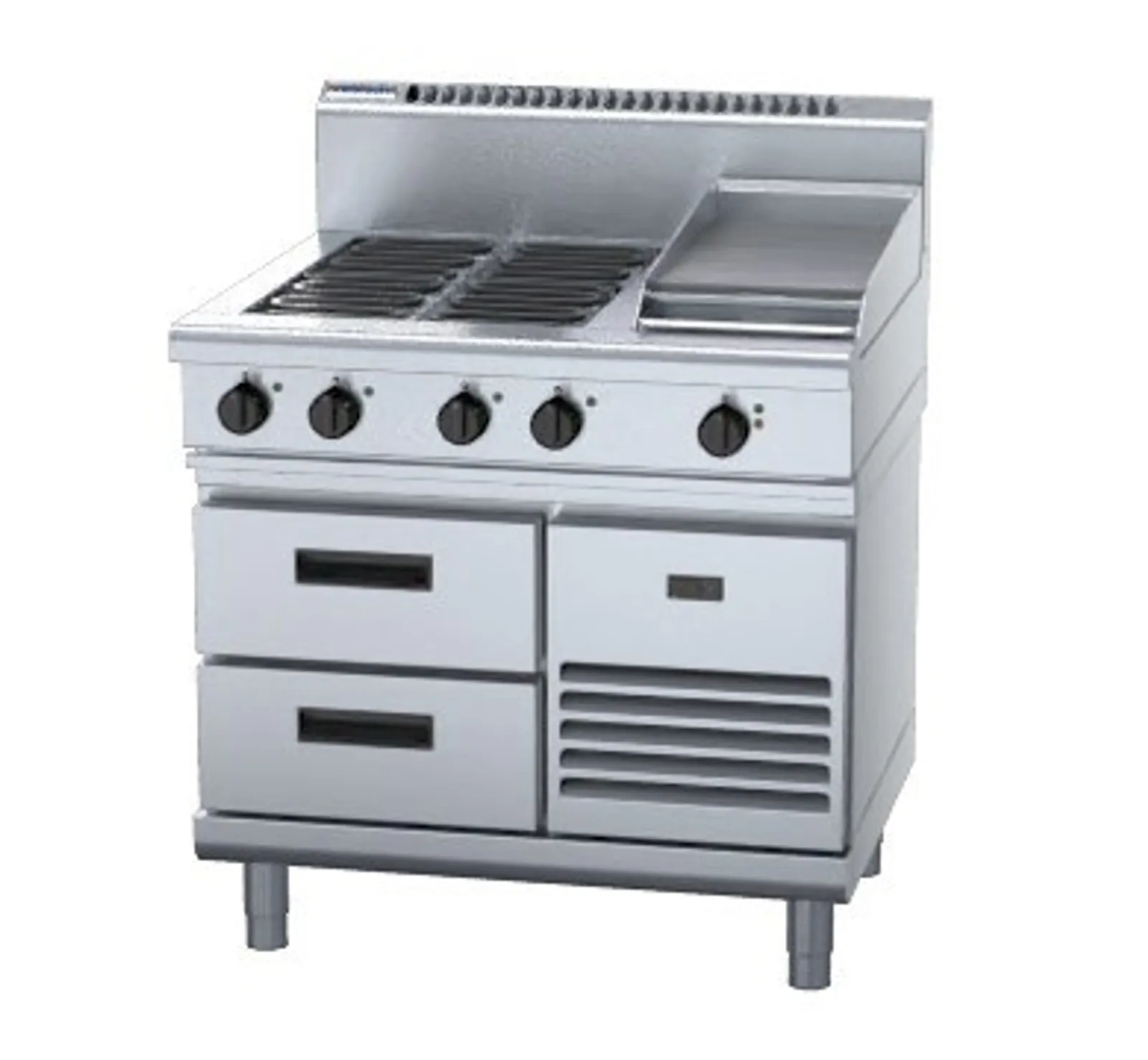

Waldorf 800 Series RN8603E-RB - 900mm Electric Cooktop Refrigerated Base

Overall Construction

Cooktop

• Welded hob with 1.5mm 304 stainless steel bull nose

• Splashback and side panels 1.2mm 304 stainless steel

• Front panels 0.9mm 304 stainless steel

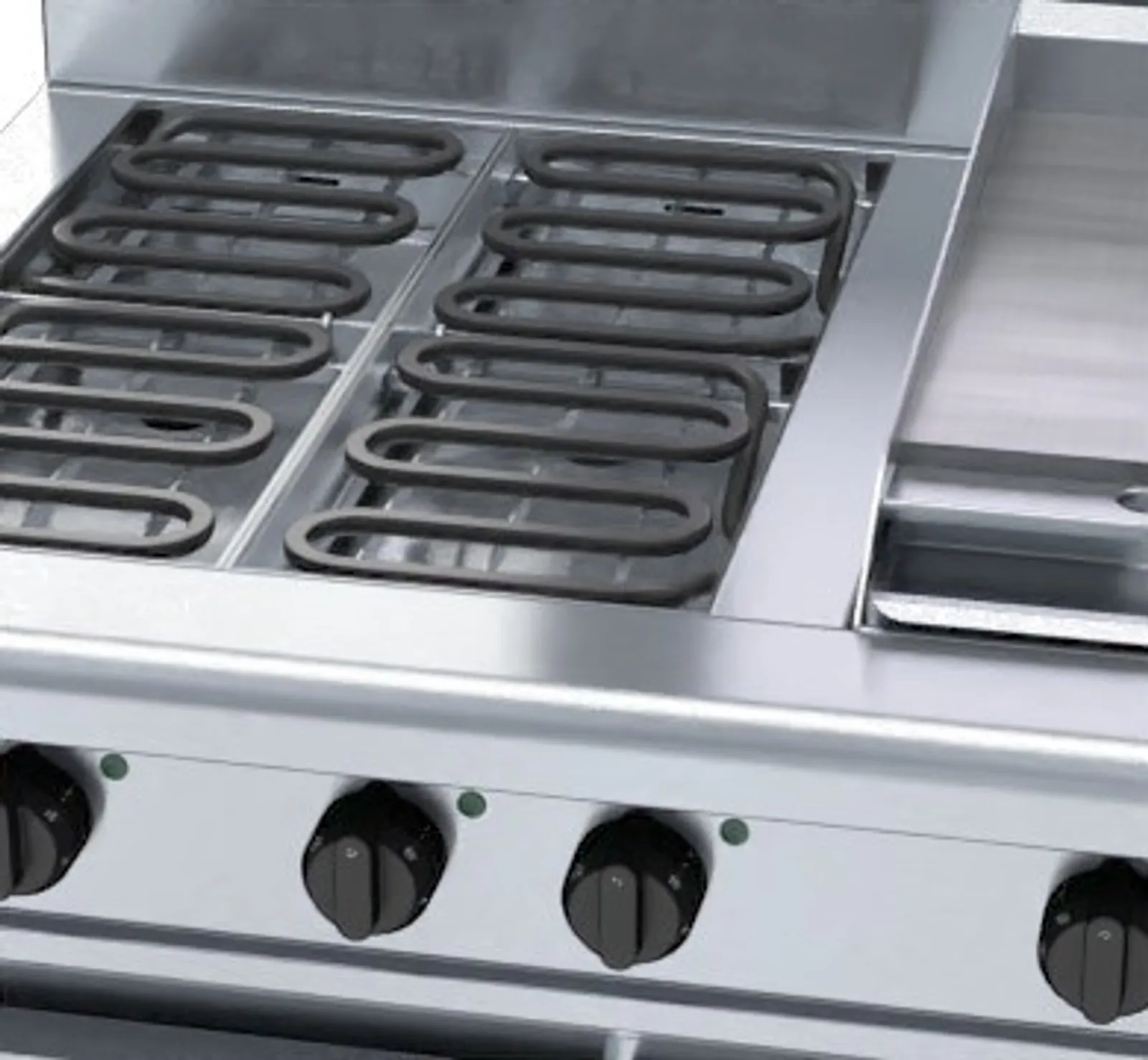

• 2.4kW open radiant elements in heavy-duty welded element frames

• Vitreous enamelled element module and hob spill trays

• Hot Plate elements with machine finished 8mm steel plate (optional extra)

• 12mm thick mild steel griddle plates

• 2.5mm 304 stainless steel griddle splash guards

• Aluminised steel internal construction

Refrigerated Base (supplied as –RB model)

• Self contained suite matched modular base

• Ventilated system with R134a refrigerant

• -2 + 8˚C temperature (Tropical Climate rated)

• Two GN 1/1 drawers

• 100mm deep pan capacity

• Heavy-duty European telescopic drawer guides

• Magnetic drawer gaskets (replaceable without tools)

• 50mm fully foamed CFC free insulation

• 304 stainless steel exterior and interior

• Anti-corrosion treated evaporator

• No condensate drain required

• 63mm dia. heavy-duty 1.2mm 304 stainless steel legs with adjustable feet

• Condensing unit removable through front of unit for service

• Easy clean interior

Controls

Cooktop

• Large easy use control knob - heat resistant reinforced

• Easy view control settings on knob

• Radiant elements with energy regulator controls

• Hot Plate elements with energy regulator controls

• 50-320˚C thermostat per 300mm griddle section

• Indicator lights for power and heating for each element control

Refrigerated Base

• Digital control electronic thermostat

• Automatic defrost

• Automatic evaporation of defrost water

• -2 +8˚C temperature range

Cleaning and Servicing

• All models with easy clean stainless steel external finish

• Removable vitreous enamelled element module and hob spill trays

• Hinge up element and griddle sections

• Access to all parts from front of unit

• Refrigerated Base condenser removable through front of unit
